OTS514 hydrochloride(1338540-63-8(free base))

Catalog No. T4134   CAS 2319647-76-0
Synonyms: OTS-514 hydrochloride

OTS514 is a highly effective TOPK(T-LAK cell-originated protein kinase) inhibitor (IC50: 2.6 nM).

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.
OTS514 hydrochloride(1338540-63-8(free base)), CAS 2319647-76-0
Please contact us for prices and availability for the specification of product you are interested at.
Product consultation
Get quote
Purity: 98%
Contact us for more batch information
Biological Description
Chemical Properties
Storage & Solubility Information
Description OTS514 is a highly effective TOPK(T-LAK cell-originated protein kinase) inhibitor (IC50: 2.6 nM).
Targets&IC50 TOPK:2.6 nM
In vitro OTS514 can inhibit the growth of kidney cancer cell lines (VMRC-RCW, Caki-1, Caki-2, 769-P, and 786-O), in which TOPK was highly expressed (IC50:19.9-44.1 nM)[1]. OTS514 markedly inhibits the growth of TOPK-positive cancer cells. It also shows the significant growth-inhibitory effect on ovarian cancer cell lines (IC50: 3.0-46 nM)[3].
In vivo In mouse xenograft studies with human lung cancer cells, OTS514 shows certain efficacy but also caused severe hematopoietic toxicity (reduction of red blood cells and white blood cells associated with marked increase in platelets)[2]. Compared with vehicle control (P < 0.001), OTS514 (p.o.) significantly elongated overall survival in the ES-2 abdominal dissemination xenograft model.
Cell Research Cell lines: CD34+ HSCs. Concentrations: 20 or 40 nM. Incubation Time: 48 h. Method: Cells were cultured in RPMI supplemented with 20% fetal bovine serum and 1×StemSpan CC100.Cells were treated with OTS514 (20 or 40 nM) or OTS964 (100 or 200 nM) for 48 hours.Collected cells were washed with PBS and resuspended in 100 ml of PBS followed by staining with CD41a antibody for 20 min at room temperature.Finally,the cells were washed with PBS again and then analyzed for CD41a staining by flow cytometry.Expression of STAT5 was examined by Western blot with an anti-STAT5 antibody.
Animal Research Animal: BALB/cSLC-nu/nu mice. Solvent: 5% glucose (i.v.); 0.5% methylcellulose (p.o.). Dosages: 1,2.5,and 5 mg/kg
Synonyms OTS-514 hydrochloride
Molecular Weight 400.92

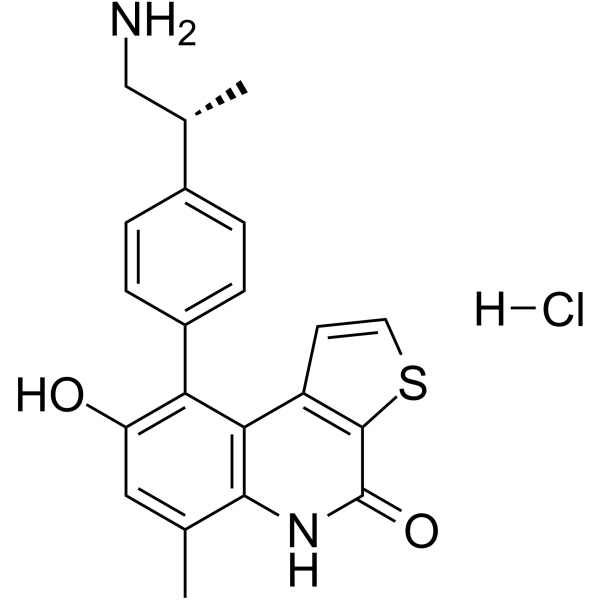

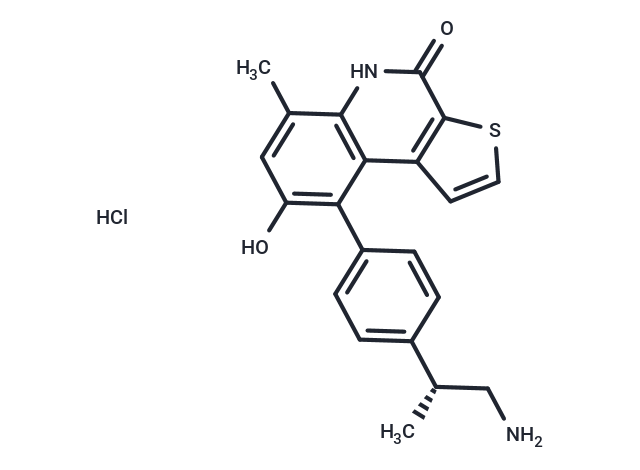

Formula C21H20N2O2S.HCl
CAS No. 2319647-76-0


Powder: -20°C for 3 years

In solvent: -80°C for 2 years

Solubility Information

DMSO: 10 mM

( < 1 mg/ml refers to the product slightly soluble or insoluble )

References and Literature

1. Kato T, et al. Oncotarget. 2016, 7(14):17652-64. 2. Matsuo Y, et al. Sci Transl Med. 2014, 6(259):259ra145. 3. Ikeda Y, et al. Clin Cancer Res. 2016, 22(24):6110-6117.

Related compound libraries

This product is contained In the following compound libraries:
Anti-Cancer Compound Library Preclinical Compound Library HIF-1 Signaling Pathway Compound Library Anti-Obesity Compound Library Hematonosis Compound Library Anti-Pancreatic Cancer Compound Library Inhibitor Library Anti-Cancer Active Compound Library Anti-Breast Cancer Compound Library Kinase Inhibitor Library

Related Products

Related compounds with same targets
(S)-(−)-Perillyl alcohol CPI-360 Diclofenac Potassium PF-543 GSK1904529A Ezatiostat LYN-1604 Curzerene

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below
Average weight of animals
Dosing volume per animal
Number of animals
Step Two: Enter the in vivo formulation
% Tween 80
% ddH2O
Calculate Reset


Molarity Calculator
Dilution Calculator
Reconstitution Calculation
Molecular Weight Calculator

Molarity Calculator allows you to calculate the

  • Mass of a compound required to prepare a solution of known volume and concentration
  • Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Concentration of a solution resulting from a known mass of compound in a specific volume
See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box


Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box


Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
