Home Tools

TH1020

Catalog No. T8727 CAS 1841460-82-9

TH1020 is a novel Inhibitor of Toll-Like Receptor 5 (TLR5)/Flagellin Complex with promising activity (IC50 =0.85±0.12 μm) and specificity.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

TH1020, CAS 1841460-82-9

Pack Size	Availability	Price/USD
2 mg	In stock	$ 39.00
5 mg	In stock	$ 64.00
10 mg	In stock	$ 97.00
25 mg	In stock	$ 198.00
50 mg	In stock	$ 372.00
100 mg	In stock	$ 556.00

Bulk Inquiry

Select Batch

Purity: 99.37%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	TH1020 is a novel Inhibitor of Toll-Like Receptor 5 (TLR5)/Flagellin Complex with promising activity (IC50 =0.85±0.12 μm) and specificity.
Targets&IC50	TLR5/flagellin complex:0.85 μM (IC50)
In vivo	TH1020 was repress the expression of downstream TNF-α signaling pathways mediated by the TLR5/flagellin complex formation.?Based on molecular docking simulation, TH1020 is suggested to compete with flagellin and disrupt its association with TLR5.?TH1020 provides a much-needed molecular probe for studying this important protein-protein interaction and a lead compound for identifying novel therapeutics targeting TLR5.

Molecular Weight	453.54

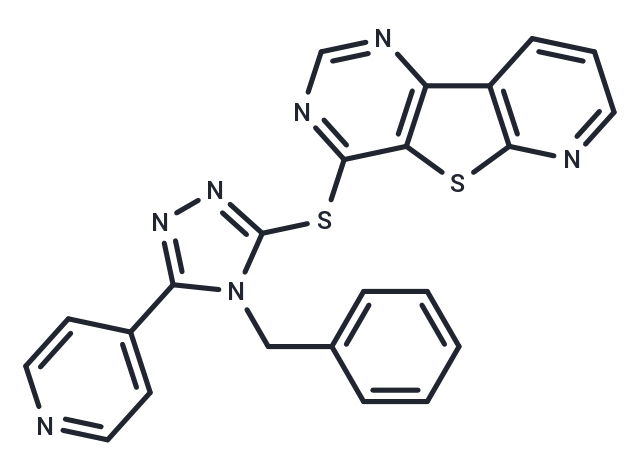

Formula	C23H15N7S2
CAS No.	1841460-82-9

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 2.5 mM

References and Literature

1. Lei Yan, et al. Pyrimidine Triazole Thioether Derivatives as Toll-Like Receptor 5 (TLR5)/Flagellin Complex Inhibitors. ChemMedChem. 2016 Apr 19;11(8):822-6.

Related compound libraries

This product is contained In the following compound libraries：

Inhibitor Library Membrane Protein-targeted Compound Library Pyroptosis Compound Library Drug-induced Liver Injury (DILI) Compound Library Anti-Infection Compound Library Immunology/Inflammation Compound Library Bioactive Compound Library Bioactive Compounds Library Max Immuno-Oncology Compound Library Anti-Bacterial Compound Library

Related Products

Related compounds with same targets

PF-4878691 Polygalasaponin F Hydroxychloroquine Tomaralimab CL264 Protosappanin A Imiquimod CU-T12-9

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.

bottom

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc.

Keywords

TH1020 1841460-82-9 Immunology/Inflammation Microbiology/Virology Antibacterial TLR interaction inhibit Bacterial flagellin Toll-like Receptor (TLR) TLR5 protein-protein TH-1020 TNF-α Inhibitor TH 1020 inhibitor

Products are chemical reagents for research use only and are not intended for human use. We do not sell to patients.
