Catalog No. T6085   CAS 1415562-82-1
Synonyms: Sphingosine Kinase 1 Inhibitor II, PF 543

PF-543 (Sphingosine Kinase 1 Inhibitor II), a novel sphingosine-competitive inhibitor of SphK1, inhibits SphK1 with IC50 and Ki of 2.0 nM and 3.6 nM.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

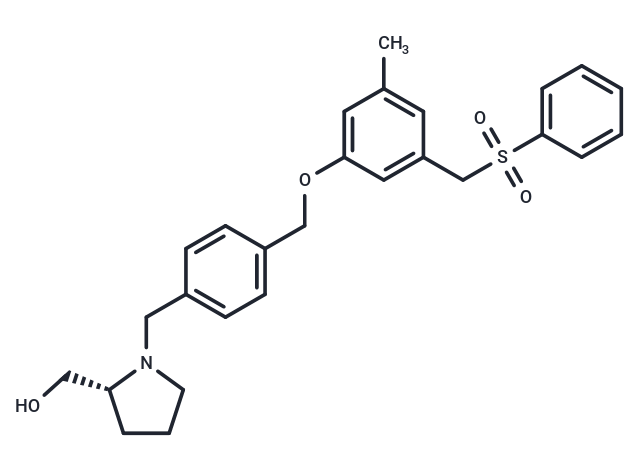

PF-543 Chemical Structure
PF-543, CAS 1415562-82-1
Pack Size Availability Price/USD Quantity
2 mg In stock $ 50.00
5 mg In stock $ 78.00
10 mg In stock $ 116.00
25 mg Inquiry $ 218.00
1 mL * 10 mM (in DMSO) In stock $ 85.00
Bulk Inquiry
Get quote
Select Batch
Contact us for more batch information
Biological Description
Chemical Properties
Storage & Solubility Information
Description PF-543 (Sphingosine Kinase 1 Inhibitor II), a novel sphingosine-competitive inhibitor of SphK1, inhibits SphK1 with IC50 and Ki of 2.0 nM and 3.6 nM.
Targets&IC50 SphK1:2.0 nM, SphK1:3.6 nM(Ki)
In vitro PF543 is a cell-permeable hydroxyl methylpyrrolidine compound that inhibits SphK-1/SphK1-catalyzed sphingosine phosphorylation in a reversible and sphingosine-competitive manner, exhibiting no affinity toward S1P receptors and much reduced inhibitory activity against Sphk2 (6.8% inhibition at 10 μM) or 46 other lipid and portein kinases (IC50 >10 μM). In the SphK1-overexpression 1483 head and neck carcinoma cells, PF-543 decreases the level of endogenous S1P 10-fold with a proportional increase in the level of sphingosine. PF-543 binds SphK1 reversibly (k off t1/2=8.5 min) and with high affinity and the binding constant (Kd) is 5 nM. PF543 had no effect on the proliferation and survival of 1483, A549, LN229, Jurkat, U937 and MCF-7 cells, despite a dramatic change in the cellular S1P/sphingosine ratio. PF-543 is effective as a potent inhibitor of S1P formation in whole blood, indicating that the SphK1 isoform of sphingosine kinase is the major source of S1P in human blood. [1]
In vivo Administration of the potent sphingosine kinase 1 inhibitor, PF-543 in a mouse hypoxic model of pulmonary hypertension has no effect on vascular remodelling but reduces right ventricular hypertrophy. Administration of 10 mg/kg PF-543 for 24 h to mice induces a decrease in SK1 expression in pulmonary vessels[2].
Kinase Assay FITC-S1P quantification/Caliper assay: A 384-well format of the SphK enzyme assay based on separation of FITC-S1P from unreacted FITC-sphingosine substrate using a microfluidic capillary electrophoresis mobility-shift system is developed. Briefly, 3 nM SphK1–His6 is incubated with 1 μM FITC-sphingosine, 20 μM ATP and 10 μM compound (a final concentration of DMSO of 2 %) in a buffer containing 100 mM Hepes (pH 7.4), 1 mM MgCl2,0.01% Triton X-100, 10% glycerol, 100 μM sodium orthovanadate and 1 mM DTT for 1 h in a 384-well Matrical MP-101-1-PP plate. Reaction mixtures (10 μL) are quenched by the addition of 20 μL of 30 mM EDTA and 0.15% Coating Reagent-3 in 100 mM Hepes, and a small aliquot of each reaction (a few nanolitres) is analysed in the Caliper LabChip 3000 instrument under -1.5 psi (psi=6.9 kPa) pressure, a downstream voltage of -1900 V and a sip time of 0.2 s. Phosphorylated fluorescent product and unphosphorylated fluorescent substrate appeared as distinctive peaks and are quantified using the Caliper data.
Cell Research CellTiter-Glo Assay (Only for Reference)
Synonyms Sphingosine Kinase 1 Inhibitor II, PF 543
Molecular Weight 465.6
Formula C27H31NO4S
CAS No. 1415562-82-1


Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

H2O: <1 mg/mL

DMSO: 93 mg/mL (199.74 mM)

Ethanol: 93 mg/mL (199.74 mM)

TargetMolReferences and Literature

1. Schnute ME, et al. Biochem J, 2012, 444(1), 79-88. 2. MacRitchie N, et al. Effect of the sphingosine kinase 1 selective inhibitor, PF-543 on arterial and cardiac remodelling in a hypoxic model of pulmonary arterial hypertension. Cell Signal. 2016 Aug;28(8):946-55.
