ATN-224

Catalog No. T14341 CAS 649749-10-0

Synonyms: Bis(choline)tetrathiomolybdate

ATN-224 (Bis(choline)tetrathiomolybdate) inhibits SOD1 activity in endothelial cells, an effect that is dose dependent with an IC50 of 17.5±3.7 nM. ATN-224 is an oral Cu2+/Zn2+-superoxide dismutase 1 (SOD1) inhibitor.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

ATN-224, CAS 649749-10-0

Pack Size	Availability	Price/USD
1 mg	In stock	$ 76.00
2 mg	In stock	$ 106.00
5 mg	In stock	$ 156.00
10 mg	In stock	$ 225.00
25 mg	In stock	$ 405.00
50 mg	In stock	$ 590.00
100 mg	In stock	$ 859.00
1 mL * 10 mM (in DMSO)	In stock	$ 167.00

Bulk Inquiry

Select Batch

Purity: 99.45%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	ATN-224 (Bis(choline)tetrathiomolybdate) inhibits SOD1 activity in endothelial cells, an effect that is dose dependent with an IC50 of 17.5±3.7 nM. ATN-224 is an oral Cu2+/Zn2+-superoxide dismutase 1 (SOD1) inhibitor.
Targets&IC50	SOD1 (endothelial cells):17.5±3.7 nM
In vitro	ATN-224 is an orally-available inorganic small molecule that inhibits the copper/zinc-dependent enzyme, superoxide dismutase 1 (Cu/Zn-SOD1), in endothelial and tumor cells[2] amd it is able to inhibit SOD1 activity in endothelial cells, an effect that is dose dependent with an IC50 of 17.5±3.7 nM. ATN-224 inhibits FGF-2-induced ERK1/2 phosphorylation in a dose-dependent and time-dependent manner with an IC50 between 1.25 and 2.5 μM, consistent with the IC50 for the inhibition of proliferation[1], and it inhibits the proliferation of both HUVEC (IC50=1.4±0.3 μM; n=5) and it is also able to inhibit the activity of purified bovine SOD1 with an IC50 of 0.33±0.03 μM after 24 hours of incubation. ATN-224 has a specific and high affinity for copper ions (108 mol/L-1) and shows no binding to calcium, iron, magnesium, zinc, or manganese ions at concentrations up to 1 mM as determined by isothermal titration calorimetry. The SOD1 inhibition by ATN-224 is time dependent, reaching maximal inhibition at ~16 hours. ATN-224 seems to inhibit SOD1 by depleting the enzyme of copper.
In vivo	Oral administration of ATN-224 leads to the inhibition of angiogenesis before any measurable reduction in copper levels in either plasma or the Matrigel plug is observed. Moreover, ATN-224 significantly (P<0.05) suppresses angiogenesis in the Matrigel plug model in mice, regardless of whether it is directly added to the plug or administered orally. These findings indicate that ATN-224's anti-angiogenic effects are not dependent on the depletion of copper[1].

Synonyms	Bis(choline)tetrathiomolybdate
Molecular Weight	432.56

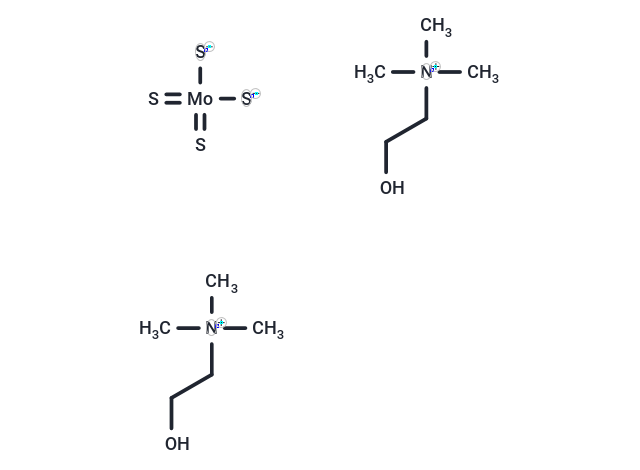

Formula	C10H28MoN2O2S4
CAS No.	649749-10-0

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 50 mg/mL (115.59 mM), Sonication is recommended.

References and Literature

1. Juarez JC, et al. Copper binding by tetrathiomolybdate attenuates angiogenesis and tumor cell proliferation through the inhibition of superoxide dismutase 1. Clin Cancer Res. 2006 Aug 15;12(16):4974-82. 2. Lin J, et al. A non-comparative randomized phase II study of 2 doses of ATN-224, a copper/zinc superoxide dismutase inhibitor, in patients with biochemically recurrent hormone-naïve prostate cancer. Urol Oncol. 2013 Jul;31(5):581-8.

Related compound libraries

This product is contained In the following compound libraries：

Drug Repurposing Compound Library Inhibitor Library Clinical Compound Library Bioactive Compound Library Cuproptosis Compound Library Orally Active Compound Library Bioactive Compounds Library Max NO PAINS Compound Library

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
