NS3623

Name: NS3623
Brand: TargetMol
SKU: T16347
Price: 34 USD
Availability: InStock
Rating: 5 (10 reviews)

Copy Product Info

🥰Excellent

Catalog No. T16347Cas No. 343630-41-1

NS3623 is an activator of human ether-a-go-go-related gene (hERG) potassium channels with a dual mode of action, also acting as an inhibitor of hERG1 channels. It activates the IKr and Ito currents and exhibits an antiarrhythmic effect.

NS3623

Copy Product Info

🥰Excellent

Purity: 97.06%

Catalog No. T16347Cas No. 343630-41-1

Pack Size	Price	USA Warehouse	Global Warehouse
5 mg	$34	In Stock	In Stock
10 mg	$54	In Stock	In Stock
25 mg	$111	In Stock	In Stock
50 mg	$180	In Stock	In Stock
100 mg	$268	In Stock	In Stock
1 mL x 10 mM (in DMSO)	$37	In Stock	In Stock

Add to Cart

Add to Quotation

In Stock Estimated shipping dateUSA Warehouse[1-2 days] Global Warehouse[5-7 days]

All TargetMol products are for research purposes only and cannot be used for human consumption. We do not provide products or services to individuals. Please comply with the intended use and do not use TargetMol products for any other purpose.

Questions

Batch Information

Select Batch

Purity:97.06%

Appearance:Solid

Color:White

Resource Download

COA HNMR LCMS

Product Introduction

Bioactivity

Description	NS3623 is an activator of human ether-a-go-go-related gene (hERG) potassium channels with a dual mode of action, also acting as an inhibitor of hERG1 channels. It activates the IKr and Ito currents and exhibits an antiarrhythmic effect.
In vitro	Administering NS3623 (5 μM) significantly enhances the tail current magnitude in isolated canine cardiomyocytes, corroborating earlier evidence that this compound augments IKr. Specifically, NS3623 boosts IKr tail currents by 60% in normal Mid cells and by 68% in cells cultured for 48 hours, at a +50 mV activating pulse. Furthermore, although the baseline IKr in cells cultured for 48 hours markedly declines compared to freshly isolated cells—from 0.47 ± 0.08 pA/pF to 0.28 ± 0.06 pA/pF—NS3623 application elevates IKr in these cultured Mid cells. An analysis of the current-voltage (I-V) relationship for IKr tail current reveals that NS3623 increases current density in Mid cells cultured for both one and two days.
In vivo	NS3623 (30 mg/kg; i.v.; lasting for 3 minutes) shortens the corrected QT interval by 25 ± 4% in anaesthetized guinea pigs. At 50 mg/kg, NS3623 immediately reduces the QTcF interval and remains significantly shortened for approximately 30 minutes, also shortening the QT interval by 30 ± 6% in conscious guinea pigs [1].

Chemical Properties

Molecular Weight	427.18
Formula	C₁₅H₁₀BrF₃N₆O
Cas No.	343630-41-1

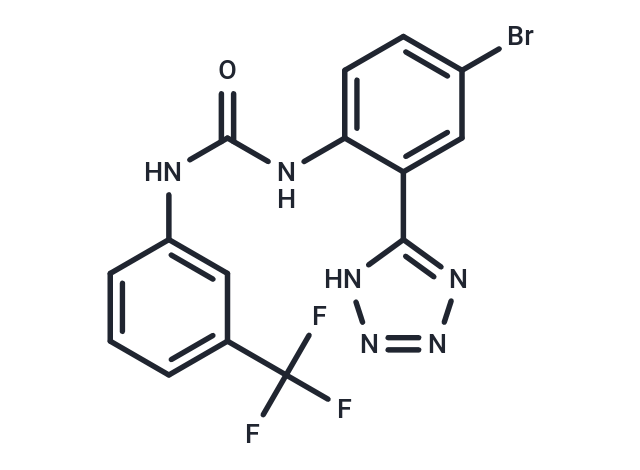

Smiles	FC(F)(F)c1cccc(NC(=O)Nc2ccc(Br)cc2-c2nnn[nH]2)c1
Relative Density.	1.759 g/cm3 (Predicted)

Storage & Solubility Information

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year | Shipping with blue ice/Shipping at ambient temperature.

Solubility Information

DMSO: 9.17 mg/mL (21.47 mM), Sonication is recommended.

In Vivo Formulation

10% DMSO+40% PEG300+5% Tween 80+45% Saline: 1 mg/mL (2.34 mM), Sonication is recommended.

Please add the solvents sequentially, clarifying the solution as much as possible before adding the next one. Dissolve by heating and/or sonication if necessary. Working solution is recommended to be prepared and used immediately. The formulation provided above is for reference purposes only. In vivo formulations may vary and should be modified based on specific experimental conditions.

Solution Preparation Table

DMSO

	1mg	5mg	10mg	50mg
1 mM	2.3409 mL	11.7047 mL	23.4093 mL	117.0467 mL
5 mM	0.4682 mL	2.3409 mL	4.6819 mL	23.4093 mL
10 mM	0.2341 mL	1.1705 mL	2.3409 mL	11.7047 mL
20 mM	0.1170 mL	0.5852 mL	1.1705 mL	5.8523 mL

Calculator

Molarity Calculator
Dilution Calculator
Reconstitution Calculator
Molecular Weight Calculator

In Vivo Formulation Calculator (Clear solution)

Please enter your animal experiment information in the following box and click Calculate to obtain the stock solution preparation method and in vivo formula preparation method:

For example, if the intended dosage is 10 mg/kg for animals weighing 20 g , with a dosing volume of 100 μL per animal, TargetMol | Animal experiments

and a total of 10 animals are to be administered, using a formulation of TargetMol | reagent

10% DMSO+ 40% PEG300+ 5% Tween 80+ 45% Saline/PBS/ddH₂O , the resulting working solution concentration would be 2 mg/mL.

Stock Solution Preparation:

Dissolve 2 mg of the compound in 100 μL DMSO TargetMol | reagent to obtain a stock solution at a concentration of 20 mg/mL . If the required concentration exceeds the compound's known solubility, please contact us for technical support before proceeding.

Preparation of the In Vivo Formulation:

1) Add 100 μL of the DMSO TargetMol | reagent stock solution to 400 μL PEG300 and mix thoroughly until the solution becomes clear.

2) Add 50 μL Tween 80 and mix well until fully clarified.

3) Add 450 μL Saline,PBS or ddH₂O TargetMol | reagent and mix thoroughly until a homogeneous solution is obtained.

This example is provided solely to demonstrate the use of the In Vivo Formulation Calculator and does not constitute a recommended formulation for any specific compound. Please select an appropriate dissolution and formulation strategy based on your experimental model and route of administration.

All co-solvents required for this protocol, includingDMSO, PEG300/PEG400, Tween 80, SBE-β-CD, and Corn oil, are available for purchase on the TargetMol website.

Dose Conversion

You can also refer to dose conversion for different animals. More Dose Conversion

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc
