DSP-2230

Name: DSP-2230
Brand: TargetMol
SKU: T15174
Price: 30 USD
Availability: InStock
Rating: 5 (10 reviews)

😃Good

Catalog No. T15174Cas No. 1233231-30-5

DSP-2230 is a selective blocker of Nav1.7/Nav1.8.

DSP-2230

😃Good

Purity: 97.14%

Catalog No. T15174Cas No. 1233231-30-5

DSP-2230 is a selective blocker of Nav1.7/Nav1.8.

Pack Size	Price	USA Warehouse	Global Warehouse
1 mg	$30	In Stock	In Stock
5 mg	$64	In Stock	In Stock
10 mg	$106	In Stock	In Stock
25 mg	$228	In Stock	In Stock
50 mg	$372	In Stock	In Stock
100 mg	$596	In Stock	In Stock
200 mg	$847	-	In Stock
1 mL x 10 mM (in DMSO)	$71	In Stock	In Stock

Add to Cart

Add to Quotation

In Stock Estimated shipping dateUSA Warehouse[1-2 days] Global Warehouse[5-7 days]

All TargetMol products are for research purposes only and cannot be used for human consumption. We do not provide products or services to individuals. Please comply with the intended use and do not use TargetMol products for any other purpose.

Questions

Batch Information

Select Batch

Purity:97.14%

Appearance:Solid

Color:White

Resource Download

COA HNMR HPLC LCMS

Product Introduction

Bioactivity

Description

DSP-2230 is a selective blocker of Nav1.7/Nav1.8.

Chemical Properties

Molecular Weight	419.4
Formula	C₂₀H₂₀F₃N₅O₂
Cas No.	1233231-30-5

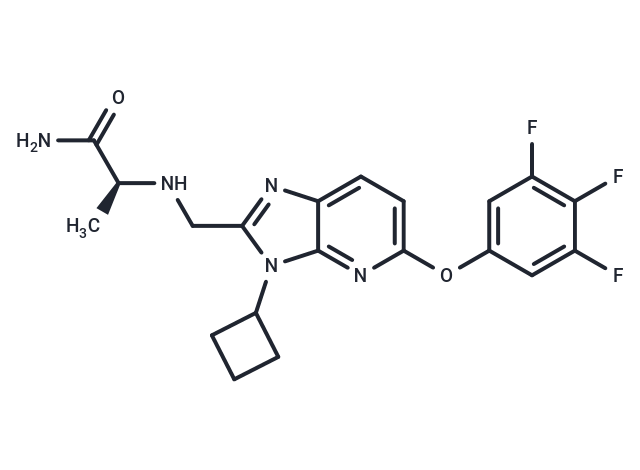

Smiles	C[C@H](NCc1nc2ccc(Oc3cc(F)c(F)c(F)c3)nc2n1C1CCC1)C(N)=O
Relative Density.	1.53 g/cm3 (Predicted)

Storage & Solubility Information

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year | Shipping with blue ice/Shipping at ambient temperature.

Solubility Information

DMSO: 245 mg/mL (584.17 mM), Sonication is recommended.

In Vivo Formulation

10% DMSO+40% PEG300+5% Tween 80+45% Saline: 4 mg/mL (9.54 mM), Sonication is recommended.

Please add the solvents sequentially, clarifying the solution as much as possible before adding the next one. Dissolve by heating and/or sonication if necessary. Working solution is recommended to be prepared and used immediately. The formulation provided above is for reference purposes only. In vivo formulations may vary and should be modified based on specific experimental conditions.

Solution Preparation Table

DMSO

	1mg	5mg	10mg	50mg
1 mM	2.3844 mL	11.9218 mL	23.8436 mL	119.2179 mL
5 mM	0.4769 mL	2.3844 mL	4.7687 mL	23.8436 mL
10 mM	0.2384 mL	1.1922 mL	2.3844 mL	11.9218 mL
20 mM	0.1192 mL	0.5961 mL	1.1922 mL	5.9609 mL
50 mM	0.0477 mL	0.2384 mL	0.4769 mL	2.3844 mL
100 mM	0.0238 mL	0.1192 mL	0.2384 mL	1.1922 mL

Calculator

Molarity Calculator
Dilution Calculator
Reconstitution Calculator
Molecular Weight Calculator

In Vivo Formulation Calculator (Clear solution)

Please enter your animal experiment information in the following box and click Calculate to obtain the stock solution preparation method and in vivo formula preparation method:

For example, if the intended dosage is 10 mg/kg for animals weighing 20 g , with a dosing volume of 100 μL per animal, TargetMol | Animal experiments

and a total of 10 animals are to be administered, using a formulation of TargetMol | reagent

10% DMSO+ 40% PEG300+ 5% Tween 80+ 45% Saline/PBS/ddH₂O , the resulting working solution concentration would be 2 mg/mL.

Stock Solution Preparation:

Dissolve 2 mg of the compound in 100 μL DMSO TargetMol | reagent to obtain a stock solution at a concentration of 20 mg/mL . If the required concentration exceeds the compound's known solubility, please contact us for technical support before proceeding.

Preparation of the In Vivo Formulation:

1) Add 100 μL of the DMSO TargetMol | reagent stock solution to 400 μL PEG300 and mix thoroughly until the solution becomes clear.

2) Add 50 μL Tween 80 and mix well until fully clarified.

3) Add 450 μL Saline,PBS or ddH₂O TargetMol | reagent and mix thoroughly until a homogeneous solution is obtained.

This example is provided solely to demonstrate the use of the In Vivo Formulation Calculator and does not constitute a recommended formulation for any specific compound. Please select an appropriate dissolution and formulation strategy based on your experimental model and route of administration.

All co-solvents required for this protocol, includingDMSO, PEG300/PEG400, Tween 80, SBE-β-CD, and Corn oil, are available for purchase on the TargetMol website.

Dose Conversion

You can also refer to dose conversion for different animals. More Dose Conversion

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc
