WYE-687

Catalog No. T6732   CAS 1062161-90-3

WYE-687 is an ATP-competitive and selective inhibitor of mTOR with IC50 of 7 nM; blocks mTORC1/pS6K(T389) and mTORC2/P-AKT(S473) but no effect observed on P-AKT(T308). Selectivity for mTOR is greater than PI3Kα (<100-fold) and PI3Kγ (<500-fold).

All TargetMol products are for research or drug registration purposes only and cannot be used for human consumption. We do not provide products or services to individuals. Please comply with the intended use and do not use TargetMol products for any other purpose in violation of laws and regulations.

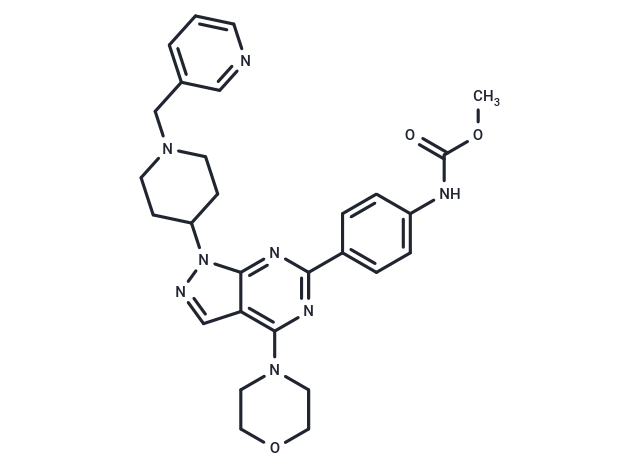

WYE-687 Chemical Structure
WYE-687, CAS 1062161-90-3
Pack Size Availability Price/USD Quantity
5 mg In stock $ 33.00
10 mg In stock $ 54.00
25 mg In stock $ 115.00
50 mg In stock Inquiry
100 mg In stock Inquiry
1 mL * 10 mM (in DMSO) In stock $ 46.00
Bulk Inquiry
Get quote
Select Batch
Purity: 98.98%
Contact us for more batch information
Biological Description
Chemical Properties
Storage & Solubility Information
Description WYE-687 is an ATP-competitive and selective inhibitor of mTOR with IC50 of 7 nM; blocks mTORC1/pS6K(T389) and mTORC2/P-AKT(S473) but no effect observed on P-AKT(T308). Selectivity for mTOR is greater than PI3Kα (>100-fold) and PI3Kγ (>500-fold).
Targets&IC50 mTOR:7 nM
In vitro Immune-complex kinase assay shows mTORC2-specific substrate His6-AKT or the mTORC1 substrate His6-S6K is dose dependently inhibited by WYE-687. WYE-687 globally inhibits mTOR signaling and AKT function in cellular models dose dependently. WYE-678 profoundly inhibits cap-dependent and global protein synthesis in MDA361, human breast cancer cells. WYE-687 shows antiproliferative effects in various cancer cell lines involving G1 cell cycle arrest and selective apoptosis. WYE-687 down-regulate angiogenic factors, VEGF and HIF-1α, in U87 mg, MDA361 and LNCap cells. [1]
Kinase Assay DELFIA Format of Purified FLAG-TOR: The routine assays with purified FLAG-TOR (FL and 3.5) are performed in 96-well plates as follows. Enzymes are first diluted in kinase assay buffer (10 mM Hepes (pH 7.4), 50 mM NaCl, 50 mM β-glycerophosphate, 10 mM MnCl2, 0.5 mM DTT, 0.25 lM microcystin LR, and 100 lg/mL BSA). To each well, 12 μL of the diluted enzyme is mixed briefly with 0.5 μL test inhibitor or control vehicle dimethyl sulfoxide (DMSO). The kinase reaction is initiated by adding 12.5 μL kinase assay buffer containing ATP and His6-S6K to give a final reaction volume of 25 μL containing 800 ng/mL FLAG-TOR, 100 μM ATP, and 1.25 μM His6-S6K. The reaction plate is incubated for 2 hours (linear at 1-6 hour) at room temperature with gentle shaking and then terminated by adding 25 μL Stop buffer (20 mM Hepes (pH 7.4), 20 mM EDTA, and 20 mM EGTA). The DELFIA detection of the phosphorylated (Thr-389) His6-S6K is performed at room temperature using a monoclonal anti-P(T389)- p70S6K antibody (1A5) labeled with Europium-N1- ITC (Eu) (10.4 Eu per antibody). Fortyfive microliters of the terminated kinase reaction mixture are transferred to a MaxiSorp plate containing 55 μL PBS. The His6-S6K is allowed to attach for 2 hour after which the wells are aspirated and washed once with PBS. One hundred microliters of DELFIA buffer with 40 ng/mL Eu-P(T389)-S6K antibody is added. The antibody binding is continued for 1 hour with gentle agitation. The wells are then aspirated and washed four times with PBS containing 0.05% Tween 20 (PBST). One hundred microliters of DELFIA Enhancement solution is added to each well and the plates are read in a PerkinElmer Victor model plate reader. Data obtained are used to calculate enzymatic activity and enzyme inhibition by potential inhibitors.
Cell Research For cell cycle analysis, cells are seeded in 96-well culture plates at 10,000 cells per well for 24 hours, treated with various inhibitors for 24 hours or 48 hours. Following treatment, cells are harvested, washed with PBS and fixed overnight at -20 °C in 70% ethanol. Cells are washed, stained with propidium iodide and analyzed for cell cycle profile (acquired 5000 cells/well) on Guava PCA-96 instrument according to the Guava Cell Cycle Protocol(Only for Reference)
Molecular Weight 528.61
Formula C28H32N8O3
CAS No. 1062161-90-3

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

H2O: 60.2 mg/mL (100 mM)

DMSO: 60.2 mg/mL (100 mM)

TargetMolReferences and Literature

1. Yu K, et al, Cancer Res, 2009, 69(15), 6232-6240.
