Membrane transporter/Ion channel Potassium Channel PAP-1


Catalog No. TQ0179   CAS 870653-45-5

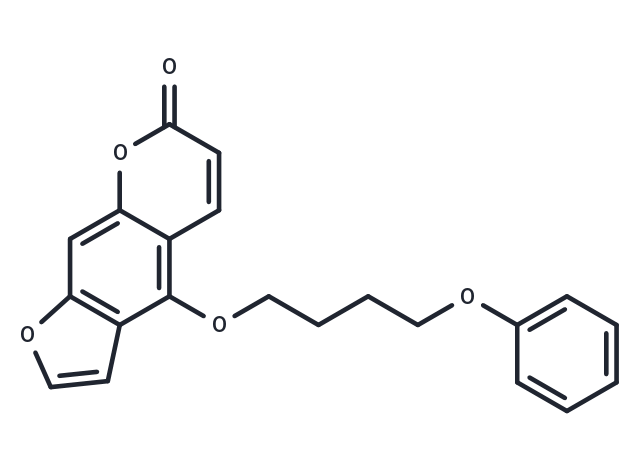

Synonyms: 5-(4-Phenoxybutoxy)psoralen

PAP-1 is a selective, and orally active Kv1.3 blocker (EC50: 2 nM).

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.
PAP-1, CAS 870653-45-5
Pack Size Availability Price/USD Quantity
2 mg In stock 57.00
5 mg In stock 81.00
10 mg In stock 138.00
25 mg In stock 307.00
50 mg In stock 547.00
100 mg In stock 918.00
200 mg In stock 1378.00
1 mL * 10 mM (in DMSO) In stock 92.00
Bulk Inquiry
Get quote
Select Batch
Purity 99.49%
Biological Description
Chemical Properties
Storage & Solubility Information
Description PAP-1 is a selective, and orally active Kv1.3 blocker (EC50: 2 nM).
In vitro PAP-1 blocks Kv1.3 in a use-dependent manner and acts by preferentially binding to the C-type inactivated state of the channel. PAP-1 exhibits 23-fold selectivity over Kv1.5 (EC50: 45 nM), and further displays 33- to 125-fold selectivity over all other Kv1-family channels [1, 2]. PAP-1 (2-100 nM; 30 minutes) suppresses the proliferation of CCR7-TEM cells (IC50: 10 nM) [1].
In vivo PAP-1 (0.3-3 mg/kg; i.p.; three times daily for 48 hours) prevents delayed type hypersensitivity (DTH) in lewis rats [1].
Cell Research
Cell Line: CCR7-TEM cells (anti-CD3 Ab stimulated) Concentration: 2, 10, 25, 100 nM Incubation Time: 30 minutes [1]
Animal Research
Animal Model: 9- to 11- week-old female Lewis rats Dosage: I.P.; three times daily for 48 hours Administration: 0.3, 1, 3 mg/kg [1]
Synonyms 5-(4-Phenoxybutoxy)psoralen
Purity 99.49%
Molecular Weight 350.36
Formula C21H18O5
CAS No. 870653-45-5


Powder: -20°C for 3 years

In solvent: -80°C for 6 months

Solubility Information

DMSO: 48 mg/mL (137 mM), Need ultrasonic

Water: Insoluble

( < 1 mg/ml refers to the product slightly soluble or insoluble )


References and Literature
1. Schmitz A, et al. Design of PAP-1, a selective small molecule Kv1.3 blocker, for the suppression of effector memory T cells in autoimmune diseases. Mol Pharmacol. 2005 Nov;68(5):1254-70. 2. Pereira LE, et al. Pharmacokinetics, toxicity, and functional studies of the selective Kv1.3 channel blocker 5-(4-phenoxybutoxy)psoralen in rhesus macaques. Exp Biol Med (Maywood). 2007 Nov;232(10):1338-54.

Related Products

Related compounds with same targets
Vernakalant PAP-1 Levcromakalim VU 0240551 Phe-Met-Arg-Phe, amide acetate Myomodulin acetate(110570-93-9 free base) Thevetin B Stauntosaponin A

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below
Average weight of animals
Dosing volume per animal
Number of animals
Step Two: Enter the in vivo formulation
% Tween 80
% ddH2O
Calculate Reset


Molarity Calculator
Dilution Calculator
Reconstitution Calculation
Molecular Weight Calculator

Molarity Calculator allows you to calculate the

  • Mass of a compound required to prepare a solution of known volume and concentration
  • Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Concentration of a solution resulting from a known mass of compound in a specific volume
See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box


Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box


Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.


Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc.
