Chromatin/Epigenetic Pim AZD1208

AZD1208

Catalog No. T2300   CAS 1204144-28-4
Purity 99.38% Datasheet MSDS

AZD1208 is a novel, orally bioavailable, highly selective PIM kinase inhibitor with single nanomolar potency against all three PIM kinases.

AZD1208, CAS 1204144-28-4
Pack Size Availability Price/USD Quantity
2 mg In stock 41.00
5 mg In stock 58.00
10 mg In stock 85.00
25 mg In stock 135.00
50 mg In stock 250.00
100 mg In stock 473.00
200 mg In stock 646.00
1 mL * 10 mM (in DMSO) In stock 58.00
Bulk Size: Please Quote for Discount
  Select Batch
Biological Description
Chemical Properties
Storage & Solubility Information
Description AZD1208 is a novel, orally bioavailable, highly selective PIM kinase inhibitor with single nanomolar potency against all three PIM kinases.
Targets&IC50 Pim1 :ic50 0.4nM,   Pim2 :ic50 5nM,   Pim3 :ic50 1.9nM,
Kinase Assay The activity of purified human PIM-1, PIM-2 and PIM-3 enzymes on substrate FL-Ahx-Bad (FITC-(AHX)RSRHSSYPAGT-COOH) is determined using a mobility shift assay on a Caliper LC3000 reader. The PIM-1 assay is performed in a 12 mL reaction containing 50 mM HEPES (pH 7.5), 1 mM DTT, 0.01% Tween 20, 50 mg/mL BSA, 10 mM MgCl2, 1.5 mM FL-Ahx-Bad peptide, 100 mM ATP, 2.5 nM PIM-1 and various amount of inhibitor. The reaction is quenched after 90 minute incubation at 25˚C with 5 mL of stop mix consisting of 100 mM HEPES, 121 mM EDTA, 0.8% Coating Reagent 3 and 0.01% Tween 20. The ATP and enzyme concentrations for the PIM-2 assay are 5 mM and 2.5 nM, respectively, while 50 mM of ATP and 0.33 nM of enzyme is used for PIM-3 assays. For high [ATP] screenings, 5 mM ATP is used with 0.67 nM enzyme for both PIM-1 and PIM-2 or 0.11 nM PIM-3. Fluorescence of phosphorylated and unphosphorylated substrate is detected and a ratiometric value is calculated to determine percent turnover. IC50 values are determined from dose-response data using IDBS ActivityBase software.
Cell Research
AZD1208 is dissolved in DMSO. MOLM-16 cells, purchased from DSMZ and cultured in RPMI containing 10% fetal bovine serum (FBS) and 1% L-glutamine, are plated at 20,000 cells per well in 96 well plates overnight. Cells are treated for 72 hours with compound or control vehicle (dimethyl sulfoxide) and cell viability is measured after the addition of Cell Titer-Blue for 4 hours at 37˚C and reading of fluorescence on a Tecan Infinite® 200. The GI50 is determined by calculating growth at each dose relative to vehicle treated cells and cell viability at the time of treatment.

Description

AZD1208 is a novel, orally bioavailable, highly selective PIM kinase inhibitor with single nanomolar potency against all three PIM kinases.

Targets&IC50

Pim1 :ic50 0.4nM

Pim2 :ic50 5nM

Pim3 :ic50 1.9nM

In Vitro

AZD1208在培养的MOLM-16细胞中引起细胞周期停滞和细胞凋亡。 这伴随着BAD,4EBP1和p70S6K磷酸化的剂量依赖性降低。 另外,AZD1208导致有效抑制来自骨髓抽吸物的原代AML细胞的集落生长并下调Pim靶标的磷酸化。

In Vivo

AZD1208剂量依赖性抑制MOLM-16和KG-1a异种移植肿瘤在体内的生长。

Kinase Assay

The activity of purified human PIM-1, PIM-2 and PIM-3 enzymes on substrate FL-Ahx-Bad (FITC-(AHX)RSRHSSYPAGT-COOH) is determined using a mobility shift assay on a Caliper LC3000 reader. The PIM-1 assay is performed in a 12 mL reaction containing 50 mM HEPES (pH 7.5), 1 mM DTT, 0.01% Tween 20, 50 mg/mL BSA, 10 mM MgCl2, 1.5 mM FL-Ahx-Bad peptide, 100 mM ATP, 2.5 nM PIM-1 and various amount of inhibitor. The reaction is quenched after 90 minute incubation at 25˚C with 5 mL of stop mix consisting of 100 mM HEPES, 121 mM EDTA, 0.8% Coating Reagent 3 and 0.01% Tween 20. The ATP and enzyme concentrations for the PIM-2 assay are 5 mM and 2.5 nM, respectively, while 50 mM of ATP and 0.33 nM of enzyme is used for PIM-3 assays. For high [ATP] screenings, 5 mM ATP is used with 0.67 nM enzyme for both PIM-1 and PIM-2 or 0.11 nM PIM-3. Fluorescence of phosphorylated and unphosphorylated substrate is detected and a ratiometric value is calculated to determine percent turnover. IC50 values are determined from dose-response data using IDBS ActivityBase software.

Cell Research

AZD1208 is dissolved in DMSO. MOLM-16 cells, purchased from DSMZ and cultured in RPMI containing 10% fetal bovine serum (FBS) and 1% L-glutamine, are plated at 20,000 cells per well in 96 well plates overnight. Cells are treated for 72 hours with compound or control vehicle (dimethyl sulfoxide) and cell viability is measured after the addition of Cell Titer-Blue for 4 hours at 37˚C and reading of fluorescence on a Tecan Infinite® 200. The GI50 is determined by calculating growth at each dose relative to vehicle treated cells and cell viability at the time of treatment.

Synonyms
Purity 98.00%
Appearance solid
Molecular Weight 379.48

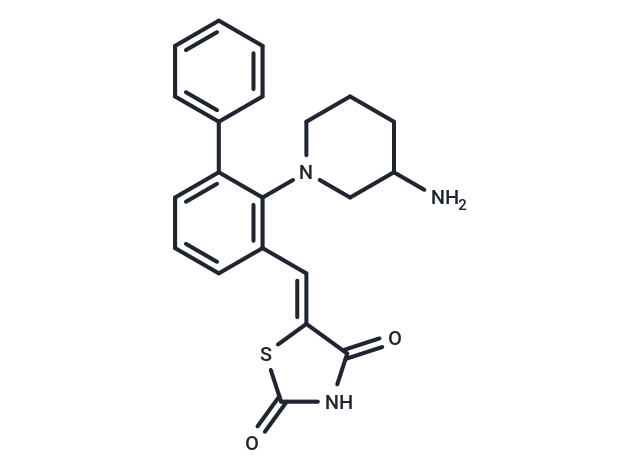

Formula C21H21N3O2S
CAS No. 1204144-28-4

Storage

-20℃ 3 years powder

-80℃ 2 years in solvent

Solubility Information

DMSO: 7.6 mg/mL (20 mM), with gentle warming

( < 1 mg/ml refers to the product slightly soluble or insoluble )

Citations

References and Literature
1. Erika Keeton, et al. 53rd ASH Annual Meeting (2011) Abstract nr 1540 2. Kreuz S, et al. Loss of PIM2 enhances the anti-proliferative effect of the pan-PIM kinase inhibitor AZD1208 in non-Hodgkin lymphomas. Mol Cancer. 2015 Dec 8;14:205. 3. Harada M, et al. The novel combination of dual mTOR inhibitor AZD2014 and pan-PIM inhibitor AZD1208 inhibits growth in acute myeloid leukemia via HSF pathway suppression. Oncotarget. 2015 Nov 10;6(35):37930-47.
