SPI-112

Catalog No. T4340   CAS 1051387-90-6

SPI-112, the SPI-112 methyl ester analog, can inhibit cellular Shp2 PTP activity. SPI-112 bound to Shp2 by surface plasmon resonance (SPR) and displayed competitive inhibitor kinetics to Shp2.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

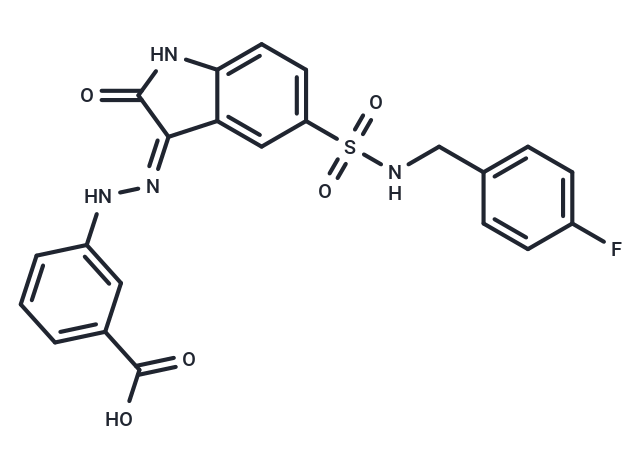

SPI-112 Chemical Structure
SPI-112, CAS 1051387-90-6
Pack Size Availability Price/USD Quantity
10 mg In stock $ 43.00
25 mg In stock $ 85.00
50 mg In stock $ 150.00
1 mL * 10 mM (in DMSO) In stock $ 48.00
Bulk Inquiry
Get quote
Select Batch
Purity: 96.01%
Contact us for more batch information
Biological Description
Chemical Properties
Storage & Solubility Information
Description SPI-112, the SPI-112 methyl ester analog, can inhibit cellular Shp2 PTP activity. SPI-112 bound to Shp2 by surface plasmon resonance (SPR) and displayed competitive inhibitor kinetics to Shp2.
Targets&IC50 PTP:18.3 μM (IC50), PTP1B:14.5 μM (IC50), SHP2:1 μM (IC50)
Kinase Assay The activity of c-KIT kinase is determined by following the production of ADP from the kinase reaction through coupling with the pyruvate kinase/lactate dehydrogenase system. In this assay, the oxidation of NADH (thus the decrease at A340 nM) is continuously monitored spectrophotometrically. The reaction mixture (100 μL) contained c-KIT (cKIT residues T544-V976, from ProQinase, 5.4 nM), polyE4Y (1 mg/mL), MgC12 (10 mM), pyruvate kinase (4 units), lactate dehydrogenase (0.7 units), phosphoenol pyruvate (1 mM), and NADH (0.28 mM) in 90 mM Tris buffer containing 0.2 % octyl-glucoside and 1% DMSO, pH 7.5. Test compounds (e.g., DCC-2618) are incubated with c-KIT and other reaction reagents at 22 °C for < 2 min before ATP (200 μM) is added to start the reaction. The absorption at 340 nm is monitored continuously for 0.5 hours at 30 °C on Polarstar Optima plate reader (BMG). The reaction rate is calculated using the 0 to 0.5 h time frame. Percent inhibition is obtained by comparison of reaction rate with that of a control (i.e. with no test compound).
Molecular Weight 468.46
Formula C22H17FN4O5S
CAS No. 1051387-90-6

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 50 mg/mL (106.73 mM)

TargetMolReferences and Literature

1. Chen L, et al. Biochem Pharmacol. Inhibition of cellular Shp2 activity by a methyl ester analog of SPI-112 . 2010 Sep 15;80(6):801-10 2. Wu R, Wang C, Li Z, et al. SOX2 promotes resistance of melanoma with PD-L1 high expression to T-cell-mediated cytotoxicity that can be reversed by SAHA[J]. Journal for immunotherapy of cancer. 2020, 8(2).

TargetMolCitations

1. Wu R, Wang C, Li Z, et al. SOX2 promotes resistance of melanoma with PD-L1 high expression to T-cell-mediated cytotoxicity that can be reversed by SAHA. Journal for immunotherapy of cancer. 2020 Nov;8(2):e001037. 2. Lu X, Yu R, Li Z, et al.JC-010a, a novel selective SHP2 allosteric inhibitor, overcomes RTK/non-RTK-mediated drug resistance in multiple oncogene-addicted cancers.Cancer Letters.2023: 216517.
