Home Tools

LY3009120

Catalog No. T6882 CAS 1454682-72-4

Synonyms: DP-4978

LY3009120 (DP-4978) is a potent pan-Raf inhibitor with IC50 of 44 nM, 31-47 nM, and 42 nM for A-raf, B-Raf, and C-Raf in A375 cells, respectively. Phase 1.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

LY3009120, CAS 1454682-72-4

Pack Size	Availability	Price/USD
2 mg	In stock	$ 30.00
5 mg	In stock	$ 46.00
10 mg	In stock	$ 77.00
25 mg	In stock	$ 174.00
50 mg	In stock	$ 328.00
100 mg	In stock	$ 555.00
1 mL * 10 mM (in DMSO)	In stock	$ 51.00

Bulk Inquiry

Select Batch

Purity: 99.54%

Purity: 99.08%

Purity: 98%

Purity: 96.96%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	LY3009120 (DP-4978) is a potent pan-Raf inhibitor with IC50 of 44 nM, 31-47 nM, and 42 nM for A-raf, B-Raf, and C-Raf in A375 cells, respectively. Phase 1.
Targets&IC50	C-Raf:4.3 nM, B-Raf (V600E):5.8 nM, B-Raf (WT):15 nM
In vitro	LY3009120 inhibits the cell growth of A375 and HCT116 cells with the IC50 of 9.2 and 220 μM, respectively. LY3009120 inhibits the tyrosine kinase KDR with the IC50 of 3.9 μM.[1]
In vivo	In rats bearing BRAF V600E ST019VR PDX tumors, LY3009120 (15 or 30 mg/kg, p.o.) shows a dose-dependent tumor growth inhibition. In nude rats bearing A375 xenograft, single dose oral treatment with LY3009120 (3 to 50 mg/kg, p.o.) shows a dose dependent inhibition of phospho-ERK, with a dose for 50% inhibition of phospho-ERK (EC50) of 4.36 mg/kg, with plasma concentration to achieve 50% inhibition of phospho-ERK (EC50) of 68.9 ng/mL or 165 nM.[1]
Kinase Assay	Kinase activity measurement using KiNativ assays: Compounds are screened in A375 cell lysates using the ATP-based probe at 5 μM. IC50 values are reported in micromolar units. Cell pellets are resuspended in four volumes of lysis buffer [25 mM Tris pH 7.6, 150 mM NaCl, 1% CHAPS, 1% Tergitol NP-40 type, 1% v/v phosphatase inhibitor cocktail II], sonicated using a tip sonicator, and dounce homogenized. Lysates are cleared by centrifugation at 100,000 g for 30 min. The cleared lysates are filtered through a 0.22 μM syringe filter, and gel filtered into reaction buffer [20 mM Hepes pH 7.8, 150 mM NaCl, 0.1% triton X-100, 1% v/v phosphatase inhibitor cocktail II]. MnCl2 is then added to the lysate to a final concentration of 20 mM prior to inhibitor treatment and probe labeling. Final inhibitor concentrations used for IC50 determinations are 10, 1, 0.1, and 0.01 μM. ATP competition experiments are performed at 1,000, 100, 10, and 1 μM ATP. All inhibitor treatments are performed at room temperature.
Cell Research	Brie?y, cells are grown in DMEM high glucose supplemented with 10% characterized fetal bovine serum and 1% penicillin/streptomycin/L -glutamine at 37℃, 5% CO2, and 95% humidity. Cells are allowed to expand until 70-95% con?uency. A serial dilution of test compound is dispensed into a 384-well black clear bottom plate. 625 cells are added per well in 50 μL of complete growth medium. Plates are incubated for 67 h at 37℃, 5% CO2 , and 95% humidity. Then, 10 μL of a 440 μM solution of resazurin in PBS is added to each well of the plate and plates are incubated for an additional 5 h at 37℃, 5% CO2, and 95% humidity. Plates are read on a Synergy2 reader using an excitation of 540 nm and an emission of 600 nm. Data are analyzed using Prism software to calculate IC 50 values.(Only for Reference)
Animal Research	Animal Models: Female NIH nude rats bearing BRAF V600E ST019VR PDX tumorsFormulation: 20% cyclodextrin, 25 mM phosphate, pH2.0Dosages: 30 mg/kgAdministration: p.o.[1]

Synonyms	DP-4978
Molecular Weight	424.51

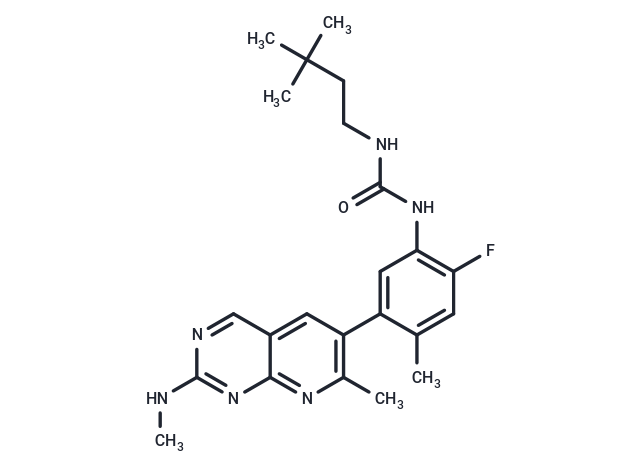

Formula	C23H29FN6O
CAS No.	1454682-72-4

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 10 mg/mL (23.56 mM)

References and Literature

1. Henry JR, et al. J Med Chem. 2015, 58(10), 4165-4179. 2. Patricelli MP, et al. Chem Biol.2011, 18(6), 699-710.

Related compound libraries

This product is contained In the following compound libraries：

Inhibitor Library Drug Repurposing Compound Library Anti-Cancer Clinical Compound Library Tyrosine Kinase Inhibitor Library Kinase Inhibitor Library Anti-Cancer Active Compound Library Anti-Cancer Drug Library Covalent Inhibitor Library Bioactive Compound Library Target-Focused Phenotypic Screening Library

Related Products

Related compounds with same targets

Vemurafenib K-Ras-IN-1 SOS1-IN-11 Pluripotin Raf inhibitor 1 NVP-BAW2881 KRPEP-2D acetate LUT014

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.

bottom

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc.

Keywords

LY3009120 1454682-72-4 Autophagy MAPK Raf Raf kinases DP 4978 inhibit LY 3009120 LY-3009120 DP4978 DP-4978 Inhibitor inhibitor

Products are chemical reagents for research use only and are not intended for human use. We do not sell to patients.
