Catalog No. T4315   CAS 623142-96-1

Ki-20227 is a specific c-Fms tyrosine kinase(CSF1R) inhibitor (IC50: 2 nM). It also has certain inhibitory against VEGFR2(IC50: 12 nM) and c-Kit/PDGFRβ(IC50: 451/217 nM), respectively.

All TargetMol products are for research or drug registration purposes only and cannot be used for human consumption. We do not provide products or services to individuals. Please comply with the intended use and do not use TargetMol products for any other purpose in violation of laws and regulations.

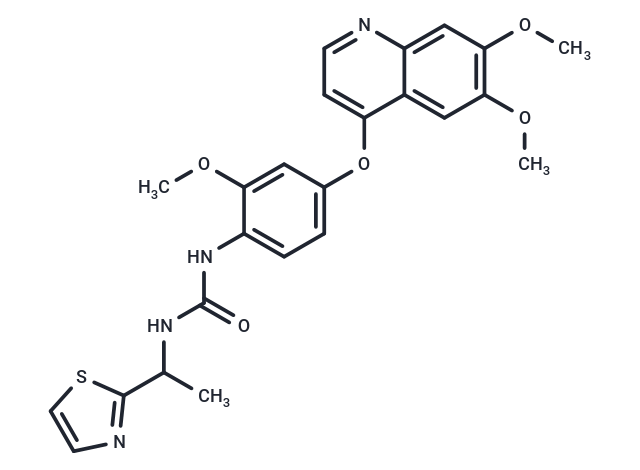

Ki20227 Chemical Structure

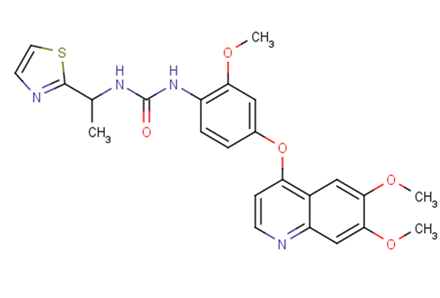

Ki20227, CAS 623142-96-1
Pack Size Availability Price/USD Quantity
1 mg In stock $ 39.00
2 mg In stock $ 55.00
5 mg In stock $ 97.00
10 mg In stock $ 163.00
25 mg In stock $ 316.00
50 mg In stock $ 563.00
100 mg In stock $ 786.00
500 mg In stock $ 1,590.00
1 mL * 10 mM (in DMSO) In stock $ 97.00
Bulk Inquiry
Get quote
Select Batch
Purity: 99.37%
Purity: 97.16%
Contact us for more batch information
Biological Description
Chemical Properties
Storage & Solubility Information
Description Ki-20227 is a specific c-Fms tyrosine kinase(CSF1R) inhibitor (IC50: 2 nM). It also has certain inhibitory against VEGFR2(IC50: 12 nM) and c-Kit/PDGFRβ(IC50: 451/217 nM), respectively.
Targets&IC50 CSF1R:2 nM, VEGFR2:12 nM
In vitro Ki20227 hasn't inhibition for other kinases tested, such as EGFR, Fms-like tyrosine kinase-3, or c-Src (c-src proto-oncogene product). Ki20227 also inhibits the M-CSF-dependent growth of M-NFS-60 cells but not the M-CSF-independent growth of A375 human melanoma cells in vitro. Ki20227 has an inhibition against M-CSF-dependent reactions, such as lipopolysaccharide-induced TNF-α production, which was enhanced by M-CSF in vitro.
In vivo Ki20227 reduces the number of tartrate-resistant acid phosphatase-positive osteoclast-like cells on bone surfaces in ovariectomized (ovx) rats. Furthermore, in the Ki20227-treated mice, the number of CD11b(+), Gr-1(+), and Ly-6 g(+) cells in the spleen were decreased and the CII-induced cytokine production in splenocytes isolated from the Ki20227-treated arthritic mice was also reduced. In EAE animal model, Ki20227 inhibits the turn-over/expansion of myeloid cells provoked by the immunization and subsequent MOG-specific T cell responses.
Molecular Weight 480.54
Formula C24H24N4O5S
CAS No. 623142-96-1


Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 55 mg/mL (114.45 mM)

TargetMolReferences and Literature

1. Ohno H, et al. A c-fms tyrosine kinase inhibitor, Ki20227, suppresses osteoclast differentiation and osteolytic bone destruction in a bone metastasis model. Mol Cancer Ther. 2006 Nov;5(11):2634-43. 2. Ohno H, et al. The orally-active and selective c-Fms tyrosine kinase inhibitor Ki20227 inhibits disease progression in a collagen-induced arthritis mouse model. Eur J Immunol. 2008 Jan;38(1):283-91. 3. Uemura Y, et al. The selective M-CSF receptor tyrosine kinase inhibitor Ki20227 suppresses experimental autoimmune encephalomyelitis. J Neuroimmunol. 2008 Mar;195(1-2):73-80. 4. Boru Hou, et al. Ki20227 influences the morphology of microglia and neurons through inhibition of CSF1R during global ischemia. Int J Clin Exp Pathol. 2016;9(12):12459-12469.

Related compound libraries

This product is contained In the following compound libraries:
Membrane Protein-targeted Compound Library Inhibitor Library Anti-Cancer Active Compound Library Kinase Inhibitor Library Tyrosine Kinase Inhibitor Library Immuno-Oncology Compound Library Anti-Lung Cancer Compound Library Bioactive Compounds Library Max Cytokine Inhibitor Library Reprogramming Compound Library

Related Products

Related compounds with same targets
c-Fms-IN-14 AEE788 CSF1R-IN-17 c-Fms-IN-3 c-Fms-IN-6 Pazopanib Hydrochloride PRN1371 cFMS Receptor Inhibitor II

TargetMolDose Conversion

You can also refer to dose conversion for different animals. More

TargetMol In vivo Formulation Calculator (Clear solution)

Step One: Enter information below
Average weight of animals
Dosing volume per animal
Number of animals
Step Two: Enter the in vivo formulation
% Tween 80
% ddH2O
Calculate Reset


Molarity Calculator
Dilution Calculator
Reconstitution Calculation
Molecular Weight Calculator

Molarity Calculator allows you to calculate the

  • Mass of a compound required to prepare a solution of known volume and concentration
  • Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Concentration of a solution resulting from a known mass of compound in a specific volume
See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box


Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box


Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.


Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc.
