IOX4

Name: IOX4
Brand: TargetMol
SKU: T7880
Price: 30 USD
Availability: InStock
Rating: 5 (10 reviews)

Copy Product Info

😃Good

Catalog No. T7880Cas No. 1154097-71-8

IOX4 is a potent PHD2 inhibitor (IC50 = 1.6 nM)

IOX4

Copy Product Info

😃Good

Purity: 99.97%

Catalog No. T7880Cas No. 1154097-71-8

IOX4 is a potent PHD2 inhibitor (IC50 = 1.6 nM)

Pack Size	Price	USA Warehouse	Global Warehouse
5 mg	$30	In Stock	In Stock
10 mg	$53	In Stock	In Stock
25 mg	$113	In Stock	In Stock
50 mg	$206	In Stock	In Stock
100 mg	$309	In Stock	In Stock
200 mg	$440	-	In Stock
1 mL x 10 mM (in DMSO)	$32	In Stock	In Stock

Add to Cart

Add to Quotation

In Stock Estimated shipping dateUSA Warehouse[1-2 days] Global Warehouse[5-7 days]

All TargetMol products are for research purposes only and cannot be used for human consumption. We do not provide products or services to individuals. Please comply with the intended use and do not use TargetMol products for any other purpose.

Questions

Batch Information

Select Batch

Purity:99.97%

Appearance:Solid

Color:White

Resource Download

COA LCMS HNMR

Product Introduction

Bioactivity

Description	IOX4 is a potent PHD2 inhibitor (IC50 = 1.6 nM)
Targets&IC50	PHD2:1.6 nM
In vivo	IOX4 as a highly potent and selective inhibitor of human PHD2, As shown by studies with mice, IOX4 is useful for in vivo work;?it will then be useful for investigations on the suitability of the PHDs as targets for cerebral diseases such as stroke.?The combined kinetic and biophysical analyses reveal that IOX4 (and IOX2) compete with 2OG for binding to PHD2;?the triazole rings of the inhibitors bind in the pocket occupied by the CH2CH2COOH side chain of 2OG.?The results thus reveal the potential of non-acid containing PHD inhibitors—an important finding given the potential of HIFα upregulation mediated by PHD inhibition in the treatment of stroke, as acids do not often permeate the blood-brain barrier efficiently[1].

Chemical Properties

Molecular Weight	328.33

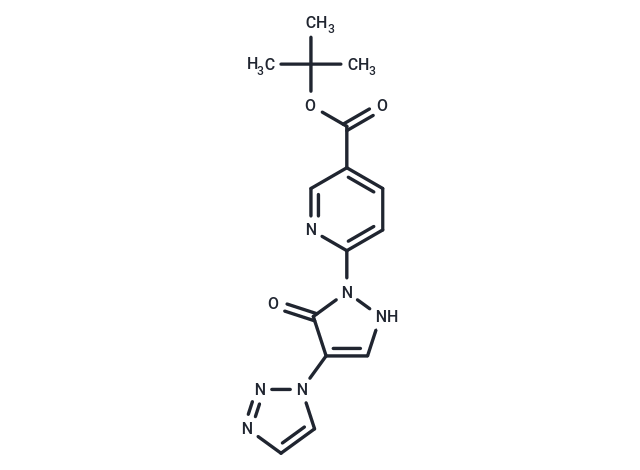

Formula	C₁₅H₁₆N₆O₃
Cas No.	1154097-71-8
Smiles	CC(C)(C)OC(=O)c1ccc(nc1)-n1[nH]cc(-n2ccnn2)c1=O
Relative Density.	1.41 g/cm3 (Predicted)

Storage & Solubility Information

Storage

In solvent: -80°C for 1 year | Shipping with blue ice/Shipping at ambient temperature.

Solubility Information

DMSO: 83.33 mg/mL (253.8 mM), Sonication is recommended.

Solution Preparation Table

DMSO

	1mg	5mg	10mg	50mg
1 mM	3.0457 mL	15.2286 mL	30.4572 mL	152.2858 mL
5 mM	0.6091 mL	3.0457 mL	6.0914 mL	30.4572 mL
10 mM	0.3046 mL	1.5229 mL	3.0457 mL	15.2286 mL
20 mM	0.1523 mL	0.7614 mL	1.5229 mL	7.6143 mL
50 mM	0.0609 mL	0.3046 mL	0.6091 mL	3.0457 mL
100 mM	0.0305 mL	0.1523 mL	0.3046 mL	1.5229 mL

Calculator

Molarity Calculator
Dilution Calculator
Reconstitution Calculator
Molecular Weight Calculator

In Vivo Formulation Calculator (Clear solution)

Please enter your animal experiment information in the following box and click Calculate to obtain the stock solution preparation method and in vivo formula preparation method:

For example, if the intended dosage is 10 mg/kg for animals weighing 20 g , with a dosing volume of 100 μL per animal, TargetMol | Animal experiments

and a total of 10 animals are to be administered, using a formulation of TargetMol | reagent

10% DMSO+ 40% PEG300+ 5% Tween 80+ 45% Saline/PBS/ddH₂O , the resulting working solution concentration would be 2 mg/mL.

Stock Solution Preparation:

Dissolve 2 mg of the compound in 100 μL DMSO TargetMol | reagent to obtain a stock solution at a concentration of 20 mg/mL . If the required concentration exceeds the compound's known solubility, please contact us for technical support before proceeding.

Preparation of the In Vivo Formulation:

1) Add 100 μL of the DMSO TargetMol | reagent stock solution to 400 μL PEG300 and mix thoroughly until the solution becomes clear.

2) Add 50 μL Tween 80 and mix well until fully clarified.

3) Add 450 μL Saline,PBS or ddH₂O TargetMol | reagent and mix thoroughly until a homogeneous solution is obtained.

This example is provided solely to demonstrate the use of the In Vivo Formulation Calculator and does not constitute a recommended formulation for any specific compound. Please select an appropriate dissolution and formulation strategy based on your experimental model and route of administration.

All co-solvents required for this protocol, includingDMSO, PEG300/PEG400, Tween 80, SBE-β-CD, and Corn oil, are available for purchase on the TargetMol website.

Dose Conversion

You can also refer to dose conversion for different animals. More Dose Conversion

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc
