Ziritaxestat

Catalog No. T4041 CAS 1628260-79-6

Synonyms: GLPG1690

Ziritaxestat (GLPG1690), an autotaxin inhibitor, currently being evaluated in an exploratory phase 2 study in idiopathic pulmonary fibrosis patients.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

Ziritaxestat, CAS 1628260-79-6

Pack Size	Availability	Price/USD
5 mg	In stock	$ 43.00
10 mg	In stock	$ 72.00
25 mg	In stock	$ 122.00
50 mg	In stock	$ 198.00
100 mg	In stock	$ 369.00
200 mg	In stock	$ 549.00
1 mL * 10 mM (in DMSO)	In stock	$ 56.00

Bulk Inquiry

Select Batch

Purity: 99.67%

Purity: 97%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	Ziritaxestat (GLPG1690), an autotaxin inhibitor, currently being evaluated in an exploratory phase 2 study in idiopathic pulmonary fibrosis patients.
Targets&IC50	ATX:15 nM.
Kinase Assay	Glutaminase Inhibition: Cell Free Assay: Assay plates are prepared containing 2 μL test compound in DMSO/well. The enzyme is diluted to 1 unit (liver) or 0.8 unit (kidney)/100 μL in glutaminase assay buffer, and 100 μL diluted enzyme is added to each well of the assay plate by Multidrop. The contents are mixed by shaking at full speed for 1 min on TiterMix 100. The plates are preincubated at room temperature (RT) for 20 min to allow binding of test compounds to glutaminase, and 50 μL glutamine solution (7 mM in assay buffer) is added to each well by Multidrop. The contents are shaken at full speed for 30 sec on TiterMix 100, and the plates are then incubated at RT for 60 min (liver) or 90 min (kidney). To stop the reactions, 20 μL HCl (0.3 N) is added to each well by Multidrop and mixed immediately by shaking for 30 sec on TiterMix 100. For quantification, glutamate (formed by glutaminase-catalyzed hydrolysis of glutamine) is oxidized to 2-oxoglutarate by a second enzyme, glutamate dehydrogenase (GDH), with the concomitant production of the reduced form of nicotinamide adenine dinucleotide (NADH). Reduction of nitro blue tetrazolium (NBT) in the assay solution by NADH, catalyzed by phenazine methosulphate (PMS), results in the formation of a blue-purple formazan. The absorption of formazan at 540 nm is linearly proportional to the concentration of glutamate up to 200 μM. NBT/GDH reagent (50 μL) is added to each well by Multidrop and mixed by shaking for 30 sec on TiterMix 100, and the plates are incubated at RT for 20 min to allow color formation by the GDH reaction. Glutamate concentration is determined from formazan concentration as determined by reading OD540 nm on a SpectraMax 340.

Synonyms	GLPG1690
Molecular Weight	588.7

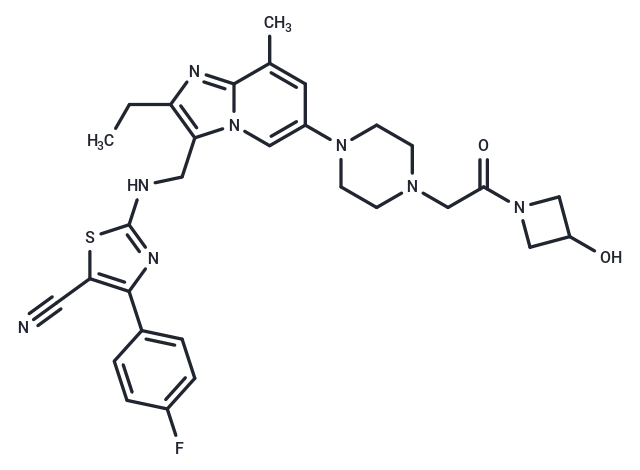

Formula	C30H33FN8O2S
CAS No.	1628260-79-6

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

H2O: < 0.1 mg/mL (insoluble)

DMSO: 41.67 mg/mL (70.78 mM), Sonification is recommended.

References and Literature

1. Desroy N., et al. Discovery of 2-[[2-Ethyl-6-[4-[2-(3-hydroxyazetidin-1-yl)-2-oxoethyl]piperazin-1-yl]-8-methylimidazo[1,2-a]pyridin-3-yl]methylamino]-4-(4-fluorophenyl)thiazole-5-carbonitrile (GLPG1690), a First-in-Class Autotaxin Inhibitor Undergoing Clinicalal Evaluation for the Treatment of Idiopathic PulmoN/Ary Fibrosis. J Med Chem. 2017 May 11;60(9):3580-3590. 2. Balupuri A., et al. Design, synthesis, docking and biological evaluation of 4-phenyl-thiazole derivatives as autotaxin (ATX) inhibitors. Bioorg Med Chem Lett. 2017 Jul 16. pii: S0960-894X(17)30718-7. 3. Chen J, Guan Z, Dong N, et al. A novel LC–MS/MS method for the determination of ziritaxestat in rat plasma and its pharmacokinetic study[J]. Biomedical Chromatography. 2020: e4863. 4. Chen J, Guan Z, Dong N, et al. A novel LC‐MS/MS method for the determination of ziritaxestat in rat plasma and its pharmacokinetic study[J]. Biomedical Chromatography. 2020: e4863. 5. Yang Y, Zhang X, Zhang X, et al. Modulators of histone demethylase JMJD1C selectively target leukemic stem cells[J]. FEBS Open Bio. 2020

Citations

1. Yang Y, Zhang X, Zhang X, et al. Modulators of histone demethylase JMJD1C selectively target leukemic stem cells. FEBS Open Bio. 2020 2. Chen J, Guan Z, Dong N, et al. A novel LC‐MS/MS method for the determination of ziritaxestat in rat plasma and its pharmacokinetic study. Biomedical Chromatography. 2020: e4863. 3. Hu Y, Li L, Tian Y, et al.Design, synthesis and evaluation of novel UDCA-aminopyrimidine hybrids as ATX inhibitors for the treatment of hepatic and pulmonary fibrosis.European Journal of Medicinal Chemistry.2023: 116029.

Related compound libraries

This product is contained In the following compound libraries：

Drug Repurposing Compound Library Anti-Neurodegenerative Disease Compound Library Inhibitor Library ReFRAME Related Library Anti-Fibrosis Compound Library Bioactive Compounds Library Max Fluorochemical Library Bioactive Compound Library Clinical Compound Library Anti-Metabolism Disease Compound Library

Related Products

Related compounds with same targets

uk-50001 Enpp-1-IN-1 Thioquinapiperifil dihydrochloride PF-05085727 Dipyridamole PAT-048 Enpp-1-IN-14 FPFT-2216

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
