PLX8394

Catalog No. T3579 CAS 1393466-87-9

PLX8394 is an orally active inhibitor of serine/threonine-protein kinase B-Raf (BRAF) protein. PLX8394 can selectively bind to and inhibit the activity of both wild-type and mutated forms of BRAF, then inhibit the proliferation of tumor cells which express mutated forms of BRAF. PLX8394 appears to be effective against tumors that express multiple mutated forms of the kinase and may be an effective therapeutic agent for tumors that are resistant to other BRAF inhibitor therapies that are specific for the BRAF V600E mutant.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

PLX8394, CAS 1393466-87-9

Pack Size	Availability	Price/USD
1 mg	In stock	$ 44.00
2 mg	In stock	$ 54.00
5 mg	In stock	$ 91.00
10 mg	In stock	$ 143.00
25 mg	In stock	$ 258.00
50 mg	In stock	$ 383.00
100 mg	In stock	$ 559.00
1 mL * 10 mM (in DMSO)	In stock	$ 123.00

Bulk Inquiry

Select Batch

Purity: 100%

Purity: 98.22%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	PLX8394 is an orally active inhibitor of serine/threonine-protein kinase B-Raf (BRAF) protein. PLX8394 can selectively bind to and inhibit the activity of both wild-type and mutated forms of BRAF, then inhibit the proliferation of tumor cells which express mutated forms of BRAF. PLX8394 appears to be effective against tumors that express multiple mutated forms of the kinase and may be an effective therapeutic agent for tumors that are resistant to other BRAF inhibitor therapies that are specific for the BRAF V600E mutant.
Targets&IC50	BRAF:14 nM, Raf:23 nM, B-Raf (V600E):3.8 nM
In vitro	PLX8394 (>25 nM) effectively inhibits phosphorylation of ERK1/2 in PRT 3 and PRT 4 cells and in addition to parental cells at 10 nM. PLX8394 effectively reduces phosphorylation of retinoblastoma protein, cyclin D3/D1, and expression of cyclin A2 in parental cells and PRT 3/4 cells. PLX8394 inhibits ERK1/2 phosphorylation and the growth of vemurafenib-resistant cells harboring either a BRAF V600K/L505H double mutation or a transposon-induced, N-terminal truncated form of BRAF[1]. PLX8394 significantly impairs tumor cell growth and suppresses MAPK signaling in LA cell lines expressing either endogenous V600E or non-V600 mutant forms of BRAF[2].
In vivo	In mice H1755 xenograft tumors, PLX8394 (150 mg/kg/day) substantially suppresses tumor growth, tumor cell proliferation and MAPK pathway signaling without overt toxicity. PLX8394 combines with erlotinib yields plasma erlotinib concentrations of >1 μM[2].
Cell Research	Dissolvent: DMSO. For MTT assays, 2×103?cells are seeded in triplicate in 96 wells in their regular culture medium (containing PLX4720 for PRT lines). Next day, cells are washed twice with PBS and then the medium is replenished containing the indicated RAF inhibitor. Medium is changed 48 hours later and after a further 48 hours, 10 μL of 5 mg/mL MTT reagent is added to wells and incubated for three hours. Formazan crystals are then solubilized overnight with a 1:10 dilution of 0.1 M glycine (pH 10.5) in DMSO. Wells are then analyzed at 450 nM in a Multiskan Spectrum spectrophotometer. Results depicted are normalized to DMSO conditions and are a composite of three independent experiments. Error bars shown are representative of the standard error of mean (SEM).
Animal Research	PLX8394 is dissolved in PEG 400 [20% (v/v)], TPGS [5% (v/v)], and water [75% (v/v)].H1755 tumor xenografts are generated by injection of 5×106 cells in a 50/50 mixture for matrigel and PBS into 6- to 8-wk-old female NOD/SCID mice. Mice are randomized to treatment groups once tumors reach an average size of 150 mm3. H1755 cells are s.c. implanted and allowed to grow to appr 200 mm3 (4 wk after implantation). Mice are then treated with vehicle, vemurafenib, or PLX8394 for 15 d. The vehicle for daily oral gavage is PEG 400 [20% (vol/vol)], tocopheryl polyethylene glycol succinate (TPGS) [5% (vol/vol)], water [75% (vol/vol)]. PLX8394 is dissolved in PEG 400 [20% (vol/vol)], TPGS [5% (vol/vol)], and water [75% (vol/vol)] and vortexed continuously throughout the dosing period. PLX8394 (p.o.) is given at a dose of 150 mg/kg/d.

Molecular Weight	542.53

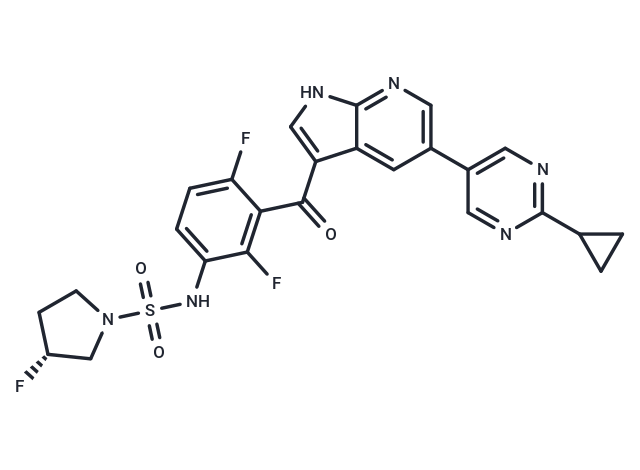

Formula	C25H21F3N6O3S
CAS No.	1393466-87-9

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 50 mg/mL (92.16 mM)

References and Literature

1. Basile KJ, et al. Inhibition of mutant BRAF splice variant signaling by next-generation, selective RAF inhibitors. Pigment Cell Melanoma Res. 2014 May;27(3):479-484. 2. Okimoto RA, et al. PreClinicalal efficacy of a RAF inhibitor that evades paradoxical MAPK pathway activation in protein kinase BRAF-mutant lung cancer. Proc Natl Acad Sci U S A. 2016 Nov 22;113(47):13456-13461.

Related compound libraries

This product is contained In the following compound libraries：

Inhibitor Library Kinase Inhibitor Library Anti-Cancer Clinical Compound Library Drug Repurposing Compound Library Anti-Cancer Active Compound Library Anti-Cancer Drug Library Tyrosine Kinase Inhibitor Library Apoptosis Compound Library Anti-Obesity Compound Library Anti-Pancreatic Cancer Compound Library

Related Products

Related compounds with same targets

Encorafenib SOS1-IN-11 Sorafenib KG5 CCT241161 Plx-4032 GSK2008607 LUT014

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
