Catalog No. T2314   CAS 717906-29-1
Synonyms: PF 431396

PF-431396 is a dual PYK2/FAK inhibitor (IC50: 11/2 nM).

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.
PF-431396, CAS 717906-29-1
Please contact us for prices and availability for the specification of product you are interested at.
Product consultation
Get quote
Purity: 98%
Contact us for more batch information
Biological Description
Chemical Properties
Storage & Solubility Information
Description PF-431396 is a dual PYK2/FAK inhibitor (IC50: 11/2 nM).
Targets&IC50 FAK:2 nM, PYK2:11 nM
Kinase Assay In Vitro Kinase Assays and Selectivity Screening : To measure Mps1 activity, 25 ng of recombinant, full-length enzyme is incubated in reaction buffer (50 mM Tris-HCl pH 7.5, 10 mM MgCl2, 0.01% Triton X-100 and 5 μM Myelin basic protein (MBP)) containing vehicle (DMSO alone) or inhibitors. Forty μM ATP (2xKm) is added with 1 μCi [γ-33P]ATP and the reaction is incubated at room temperature for 45 minutes. Reactions are terminated with 3% phosphoric acid and transferred to P81 filter plates. Samples are washed in 1% phosphoric acid and 33P radioactivity is measured on a TopCount scintillation reader. In-house kinase assays are all carried out at 2xKm ATP concentrations. MPI-0479605 (500 nM) is also screened against a larger kinase panel.
Synonyms PF 431396
Molecular Weight 506.5

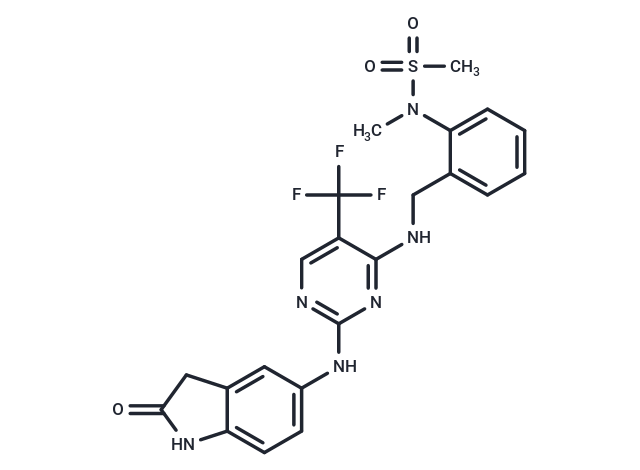

Formula C22H21F3N6O3S
CAS No. 717906-29-1


Powder: -20°C for 3 years

In solvent: -80°C for 2 years

Solubility Information

DMSO: 25.3 mg/mL (50 mM)

( < 1 mg/ml refers to the product slightly soluble or insoluble )

References and Literature

1. Han S, et al. J Biol Chem. 2009, 284(19), 13193-13201. 2. Tse KW, et al. J Biol Chem. 2009, 284(34), 22865-22877. 3. González-Fernández L, et al. Biol Reprod. 2013, 88(6), 13

Related compound libraries

This product is contained In the following compound libraries:
Anti-Cancer Compound Library Inhibitor Library Fluorochemical Library Kinase Inhibitor Library Cytoskeletal Signaling Pathway Compound Library Angiogenesis related Compound Library Bioactive Compound Library Tyrosine Kinase Inhibitor Library

Related Products

Related compounds with same targets
Inulicin 5α-Hydroxycostic acid Batatasin III WAY-311677 Compound 1T-0219 (SC) GSK215 Nitidine chloride Roslin 2 bromide

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below
Average weight of animals
Dosing volume per animal
Number of animals
Step Two: Enter the in vivo formulation
% Tween 80
% ddH2O
Calculate Reset


Molarity Calculator
Dilution Calculator
Reconstitution Calculation
Molecular Weight Calculator

Molarity Calculator allows you to calculate the

  • Mass of a compound required to prepare a solution of known volume and concentration
  • Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Concentration of a solution resulting from a known mass of compound in a specific volume
See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box


Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box


Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
