NIR-Thiol dinitrobenzenesulfonate

Catalog No. T19039 CAS T19039

NIR-Thiol dinitrobenzenesulfonate has both absorption and emission in the NIR region. It is capable of imaging endogenously produced thiol in living cells and mice.

All TargetMol products are for research or drug registration purposes only and cannot be used for human consumption. We do not provide products or services to individuals. Please comply with the intended use and do not use TargetMol products for any other purpose in violation of laws and regulations.

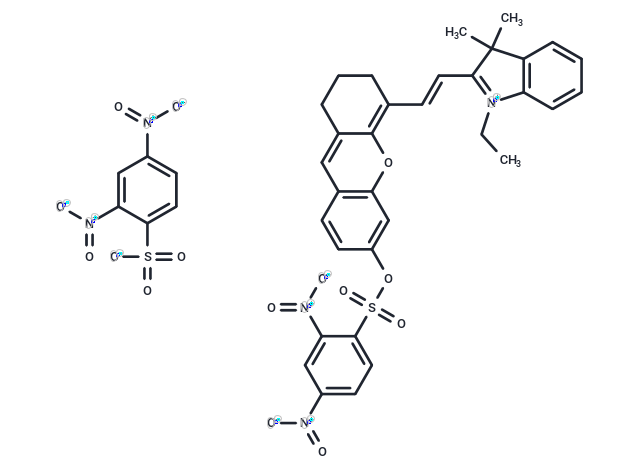

NIR-Thiol dinitrobenzenesulfonate Chemical Structure

NIR-Thiol dinitrobenzenesulfonate, CAS T19039

Pack Size	Availability	Price/USD	Quantity
100 mg	Inquiry	Inquiry
500 mg	Inquiry	Inquiry

Bulk Inquiry

Biological Description

Chemical Properties

Storage & Solubility Information

Description	NIR-Thiol dinitrobenzenesulfonate has both absorption and emission in the NIR region. It is capable of imaging endogenously produced thiol in living cells and mice.
In vitro	NIR-Thiol dinitrobenzenesulfonate is highly selective to typical small molecular weight biological thiols (Cys, Hcy, and GSH) over other biorelevant species, such as Phe, Gly, Arg, Lys, Tyr, Leu, glucose, Ser, and Val. The sensor NIR-Thiol dinitrobenzenesulfonate is incubated with living HeLa or Bel 7702 cells, and bright fluorescence is observed. NIR-Thiol dinitrobenzenesulfonate has some prominent features, including NIR absorption and emission, rapid response, high sensitivity, excellent selectivity, good cell membrane permeability, and low cytotoxicity.
In vivo	Varying doses (0, 20, 40, or 160 nmol) of NIR-Thiol dinitrobenzenesulfonate were administered intraperitoneally in mice, resulting in observable fluorescence intensity changes. Mice receiving the 20 nmol dose exhibited strong fluorescence, while control mice showed negligible fluorescence. Increasing the dosage to 40 or 160 nmol enhanced the fluorescence brightness significantly. Notably, a 700-fold increase in signal-to-noise contrast ratio was recorded for the 20 nmol dosage, which escalated to approximately 2900- and 7400-fold at 40 and 160 nmol dosages, respectively.

Molecular Weight	875.83
Formula	C39H33N5O15S2
CAS No.	T19039

Storage

keep away from direct sunlight

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

References and Literature

1. Yuan L, et al. A unique approach to development of near-infrared fluorescent sensors for in vivo imaging. J Am Chem Soc. 2012 Aug 15;134(32):13510-23.

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
