MGV354

Catalog No. T12888 CAS T12888

MGV354 is a soluble activator of guanylate cyclase(sGC) with EC 50 s of <0.5 nM, and 5 nM in CHO and GTM-3 E cells, respectively [1] [2].

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

MGV354, CAS T12888

Pack Size	Availability	Price/USD	Quantity
25 mg	10-14 weeks	$ 1,715.00
50 mg	10-14 weeks	$ 2,885.00

Bulk Inquiry

This compound is a customized synthesis product. We have a strong synthesis team with excellent synthesis technology and capabilities. However, due to various objective factors, there is a low probability that the synthesis will not be successful. If you need to learn more, please feel free to consult us, we will serve you wholeheartedly.

Biological Description

Chemical Properties

Storage & Solubility Information

Description	MGV354 is a soluble activator of guanylate cyclase(sGC) with EC 50 s of <0.5 nM, and 5 nM in CHO and GTM-3 E cells, respectively [1] [2].
In vitro	Treatment with MGV354, ranging from 0.1 nM to 10 μM, for one hour induces a dose-dependent elevation in cGMP levels within normal human trabecular meshwork (NTM) cells, showcasing an average effective concentration (EC50) of 2.5±1.6 nM after ODQ (20 μM) administration. The resultant average cGMP concentration achieved by MGV354 in NTM cells is 46±28 nM. Moreover, at a concentration of 1 μM, MGV354 consistently augments intracellular cGMP levels in NTM cells in a linear, time-dependent fashion, under assay conditions extending up to three hours [3].
In vivo	MGV354 (Compound (+)-23) robustly lowers intraocular pressure in a cynomolgus model of elevated intraocular pressure over 24 h after a single topical ocular drop and has been selected for clinical evaluation [1].

Molecular Weight	575.7

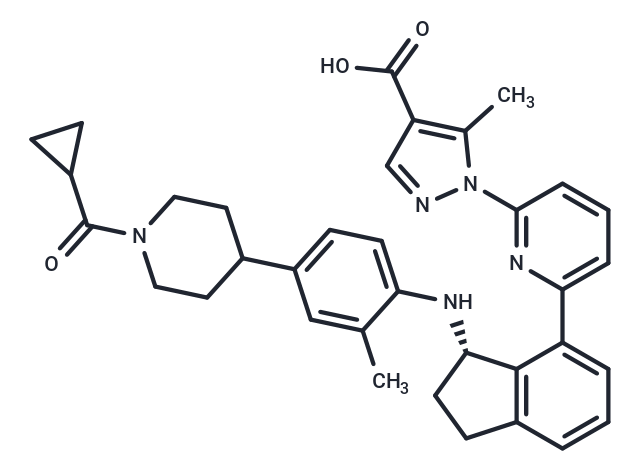

Formula	C35H37N5O3
CAS No.	T12888

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

References and Literature

1. Ehara T, et al. The Discovery of ( S)-1-(6-(3-((4-(1-(Cyclopropanecarbonyl)piperidin-4-yl)-2-methylphenyl)amino)-2,3-dihydro-1 H-inden-4-yl)pyridin-2-yl)-5-methyl-1 H-pyrazole-4-carboxylic Acid, a Soluble Guanylate Cyclase Activator Specifically Designed for Topical Ocular Delivery as a Therapy for Glaucoma. J Med Chem. 2018 Mar 22;61(6):2552-2570. 2. Stacy R, et al. A Randomized, Controlled Phase I/II Study to Evaluate the Safety and Efficacy of MGV354 for Ocular Hypertension or Glaucoma.Am J Ophthalmol. 2018 Aug;192:113-123. 3. Prasanna G, et al. A Novel Selective Soluble Guanylate Cyclase Activator, MGV354, Lowers Intraocular Pressure in Preclinical Models, Following Topical Ocular Dosing.Invest Ophthalmol Vis Sci. 2018 Apr 1;59(5):1704-1716.

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.

bottom

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc.

Keywords

MGV354 T12888 Others MGV 354 MGV-354 inhibitor inhibit

Products are chemical reagents for research use only and are not intended for human use. We do not sell to patients.
