AGI-5198

Catalog No. T2104   CAS 1355326-35-0
Synonyms: IDH-C35

AGI-5198 (IDH-C35) is a highly effective and specific inhibitor of IDH1 R132H/R132C mutants (IC50: 0.07/0.16 μM).

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

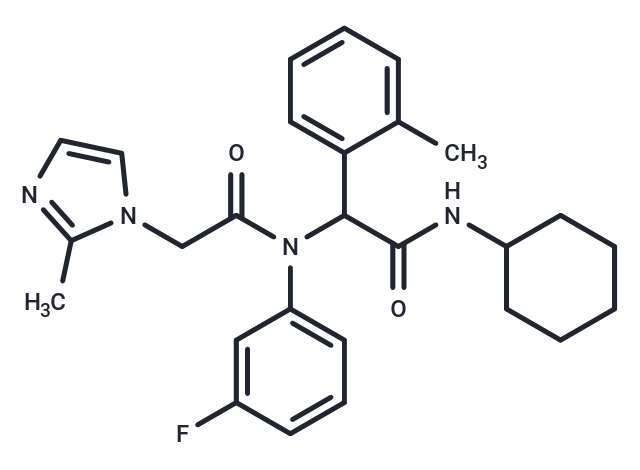

AGI-5198 Chemical Structure
AGI-5198, CAS 1355326-35-0
Pack Size Availability Price/USD Quantity
5 mg In stock $ 32.00
10 mg In stock $ 52.00
50 mg In stock $ 77.00
100 mg In stock $ 126.00
1 mL * 10 mM (in DMSO) In stock $ 57.00
Bulk Inquiry
Get quote
Select Batch
Purity: 99.23%
Purity: 97.3%
Contact us for more batch information
Biological Description
Chemical Properties
Storage & Solubility Information
Description AGI-5198 (IDH-C35) is a highly effective and specific inhibitor of IDH1 R132H/R132C mutants (IC50: 0.07/0.16 μM).
Targets&IC50 R132H-IDH1:70 nM, R132C-IDH1:0.16 μM
Kinase Assay IDH enzyme activity: Compound is prepared as 10 mM stock in DMSO and diluted to 50X final concentration in DMSO, for a 50 μL reaction mixture. IDH enzyme activity converting alpha-ketogluta rate to 2-hydroxyglutarate is measured using a NADPH depletion assay. In the assay the remaining cofactor is measured at the end of the reaction with the addition of a catalytic excess of diaphorase and resazurin, to generate a fluorescent signal in proportion to the amount of NADPH remaining. IDH enzyme activity in the direction of isocitrate to alpha-ketoglutarate conversion is measured by direct coupling of the NADPH production to conversion of resazurin to resorufin by diaphorase. In both cases, resorufin is measured fluorometrically at Ex544 Em 590.
Cell Research AGI-5198 is dissolved in DMSO.TS603 cells are grown in medium containing either AGI-5198 (1.5 μM) or DMSO vehicle control.One week prior to harvest cells are ransferred to differentiation medium (DMEM F12; 15 mM HEPES; 0.06% glucose; B27 without vitamin A; N2; Insulin/transferrin; 1% FBS) containing freshly added retinoic acid (1 μM).ChIP of non-crosslinked cells is then carried out using established ChIP methods.350 μg of lysate is immunoprecipitated-using anti-H3K9Me3,H3K27me3 or Rabbit Control IgG.After washing,ChIP DNA is eluted from protein G beads and analyzed by RT-PCR using SYBR green.Relative occupancy is calculated using the standard curve method and fold enrichment versus IgG.Enrichment in AGI- 5198-treated cells is normalized to vehicle control.Means and standard deviation are calculated from 4 technical replicates.
Synonyms IDH-C35
Molecular Weight 462.56
Formula C27H31FN4O2
CAS No. 1355326-35-0

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 23 mg/mL (49.7 mM)

Ethanol: 12 mg/mL (25.9 mM)

H2O: < 1 mg/mL (insoluble or slightly soluble)

TargetMolReferences and Literature

1. Rohle D, et al. Science, 2013, 340(6132), 626-630.

Related compound libraries

This product is contained In the following compound libraries:
Highly Selective Inhibitor Library Lipid Metabolism Compound Library Inhibitor Library NO PAINS Compound Library Bioactive Compound Library Anti-Metabolism Disease Compound Library Metabolism Compound Library Glycometabolism Compound Library Anti-Cancer Metabolism Compound Library Fluorochemical Library

Related Products

Related compounds with same targets
Merimepodib Glycyrrhizic acid Tiazofurin Succinyl phosphonate trisodium salt Nitrophenide BAY-1436032 JX06 ADH-1

TargetMolDose Conversion

You can also refer to dose conversion for different animals. More

TargetMol In vivo Formulation Calculator (Clear solution)

Step One: Enter information below
Dosage
mg/kg
Average weight of animals
g
Dosing volume per animal
ul
Number of animals
Step Two: Enter the in vivo formulation
% DMSO
%
% Tween 80
% ddH2O
Calculate Reset

TargetMolCalculator

Molarity Calculator
Dilution Calculator
Reconstitution Calculation
Molecular Weight Calculator
=
X
X

Molarity Calculator allows you to calculate the

  • Mass of a compound required to prepare a solution of known volume and concentration
  • Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Concentration of a solution resulting from a known mass of compound in a specific volume
See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

X
=
X

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

=
/

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.

bottom

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc.
