Catalog No. T5121   CAS 1450824-22-2

TD139 is an inhaled galectin-3 inhibitor (Kd: 14 nM).

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.
TD139, CAS 1450824-22-2
Please contact us for prices and availability for the specification of product you are interested at.
Product consultation
Get quote
Purity: 98%
Contact us for more batch information
Biological Description
Chemical Properties
Storage & Solubility Information
Description TD139 is an inhaled galectin-3 inhibitor (Kd: 14 nM).
Targets&IC50 galectin-3:14 nM (Kd)
In vitro TD139 has a high affinity for galectin-3 with a Kd of 14 nM and 10 nM for galectin-1, but low affinity for galectins 2, 4N, 4C, 7, 8N, or 9N [1].
In vivo In primary lung AECs TD139 reduces TGF-β1–induced β-catenin translocation to the nucleus, with most of the β-catenin remaining at the cell surface. TD139 blocks TGF-β1–induced β-catenin phosphorylation. A marked reduction in fibrosis and β-catenin activation accompanied by the decreased galectin-3 expression is observed in the lungs of WT mice treated with TD139 [1]. Pretreatment of WT C57BL/6 mice with TD139 leads to the attenuation of liver injury and milder infiltration of IFNγ- and IL-17- and -4-producing CD4(+) T cells, as well as an increase in the total number of IL-10-producing CD4(+) T cells and F4/80(+) CD206(+) alternatively activates macrophages and prevents the apoptosis of liver-infiltrating MNCs [2].
Molecular Weight 648.64

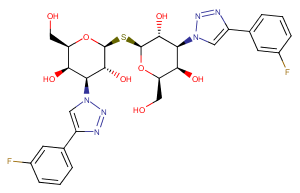

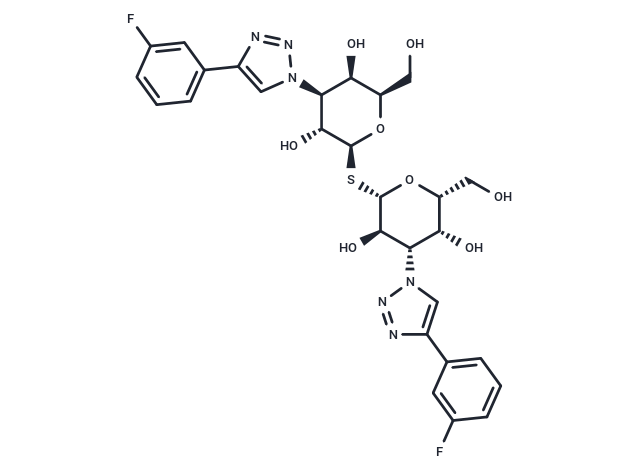

Formula C28H30F2N6O8S
CAS No. 1450824-22-2


Powder: -20°C for 3 years

In solvent: -80°C for 2 years

Solubility Information

H2O: Insoluble

Ethanol: 3 mg/mL

DMSO: 5 mg/mL

( < 1 mg/ml refers to the product slightly soluble or insoluble )

References and Literature

1. Mackinnon AC, et al. Regulation of transforming growth factor-β1-driven lung fibrosis by galectin-3. Am J Respir Crit Care Med. 2012 Mar 1;185(5):537-46. 2. Volarevic V, et al. Galectin-3 deficiency prevents concanavalin A-induced hepatitis in mice. Hepatology. 2012 Jun;55(6):1954-64.


1. Liu Y, Zhao C, Meng J, et al. Galectin-3 regulates microglial activation and promotes inflammation through TLR4/MyD88/NF-kB in experimental autoimmune uveitis. Clinical Immunology. 2022: 108939.

Related compound libraries

This product is contained In the following compound libraries:
Inhibitor Library Immunology/Inflammation Compound Library Anti-Metabolism Disease Compound Library Drug Repurposing Compound Library Nonsteroidal Anti-Inflammatory Compound Library Anti-Fibrosis Compound Library Bioactive Compound Library Clinical Compound Library

Related Products

Related compounds with same targets
TD139 Thiodigalactoside OTX008 GB1107 G3-C12 acetate(848301-94-0 free base)

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below
Average weight of animals
Dosing volume per animal
Number of animals
Step Two: Enter the in vivo formulation
% Tween 80
% ddH2O
Calculate Reset


Molarity Calculator
Dilution Calculator
Reconstitution Calculation
Molecular Weight Calculator

Molarity Calculator allows you to calculate the

  • Mass of a compound required to prepare a solution of known volume and concentration
  • Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Concentration of a solution resulting from a known mass of compound in a specific volume
See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box


Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box


Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
