C-176

Copy Product Info
🥰Excellent
Hot
Catalog No. T5154Cas No. 314054-00-7
Alias STING inhibitor 1, C176

C-176 (STING inhibitor 1) is a STING inhibitor with selectivity and blood-brain barrier permeability. C-176 inhibits STING-mediated IFNβ production and possesses anti-inflammatory activity.

C-176

C-176

Copy Product Info
🥰Excellent
Hot
Purity: 99.97%
Catalog No. T5154Alias STING inhibitor 1, C176Cas No. 314054-00-7
C-176 (STING inhibitor 1) is a STING inhibitor with selectivity and blood-brain barrier permeability. C-176 inhibits STING-mediated IFNβ production and possesses anti-inflammatory activity.
Pack SizePriceUSA WarehouseGlobal WarehouseQuantity
5 mg$30In StockIn Stock
10 mg$39In StockIn Stock
25 mg$79In StockIn Stock
50 mg$137In StockIn Stock
100 mg$198In StockIn Stock
500 mg$515In StockIn Stock
Add to Cart
Add to Quotation
In Stock Estimated shipping dateUSA Warehouse[1-2 days] Global Warehouse[5-7 days]
All TargetMol products are for research purposes only and cannot be used for human consumption. We do not provide products or services to individuals. Please comply with the intended use and do not use TargetMol products for any other purpose.
Questions
TargetMol
View More

Batch Information

Select Batch
Purity:99.97%
Color:Yellow
Contact us for more batch information

Resource Download

Product Introduction

Bioactivity
Description
C-176 (STING inhibitor 1) is a STING inhibitor with selectivity and blood-brain barrier permeability. C-176 inhibits STING-mediated IFNβ production and possesses anti-inflammatory activity.
Targets&IC50
HCC1806 cells:6.2 μM, HCC1143 cells:9.5 μM, HCC38 cells:8.7 μM, RAW 264.7 cells:1.14 μM
In vitro
METHODS: HEK293T cells expressing mCherry-STING were transfected with plasmids encoding cdG Syn or RIG-I and an IFNβ luciferase reporter gene, then treated with C-176 (0.01-1.25 µM) to detect IFNβ luciferase activity.
RESULTS: C-176 strongly reduced STING-mediated, but not RIG-I or TBK 1-mediated, IFNβ reporter activity. [1]
METHODS: The rat microglial cell line GMI-R1 was treated with LPS (1 µg/mL) and C-176 (20 µM), and target protein expression levels were measured by Western Blot.
RESULTS: LPS activated the STING signaling pathway. Although the levels of mitochondrial superoxide and STING were not affected by C-176 treatment, the increase in the phosphorylation levels of TBK1 and NF-κB could be significantly reversed by C-176, suggesting that STING signaling could be inhibited by C-176 treatment in GMI-R1 cell line. [2]
In vivo
METHODS: To investigate the anti-inflammatory activity in vivo, C-176 (750/375 nmol per mouse in corn oil) was injected intraperitoneally into C57BL/6J mice, and CMA (224 mg/kg) was administered either 1 h or 4 h. After 4 h, the mice were euthanized, and the serum was collected for measurement of CMA-induced cytokine levels.
RESULTS: C-176 significantly reduced the CMA-mediated induction of Type 1 IFNs and IL-6 serum levels without significant toxicity. [1]
SynonymsSTING inhibitor 1, C176
Chemical Properties
Molecular Weight358.09
FormulaC11H7IN2O4
Cas No.314054-00-7

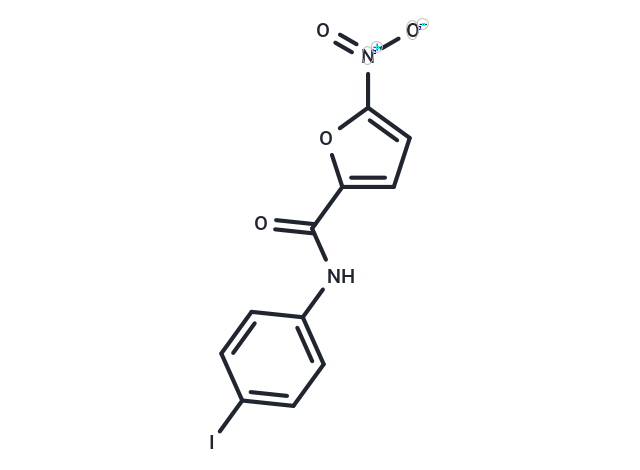

Smiles[O-][N+](=O)c1ccc(o1)C(=O)Nc1ccc(I)cc1
Relative Density.1.935 g/cm3 (Predicted)
Storage & Solubility Information
StorageIn solvent: -80°C for 1 year | Shipping with blue ice/Shipping at ambient temperature.
Solubility Information
DMSO: 120 mg/mL (335.11 mM), Sonication is recommended.
In Vivo Formulation
10% DMSO+40% PEG300+5% Tween80+45% Saline: 1.8 mg/mL (5.03 mM)
Please add the solvents sequentially, clarifying the solution as much as possible before adding the next one. Dissolve by heating and/or sonication if necessary. Working solution is recommended to be prepared and used immediately. The formulation provided above is for reference purposes only. In vivo formulations may vary and should be modified based on specific experimental conditions.
Solution Preparation Table
DMSO
1mg5mg10mg50mg
1 mM2.7926 mL13.9630 mL27.9259 mL139.6297 mL
5 mM0.5585 mL2.7926 mL5.5852 mL27.9259 mL
10 mM0.2793 mL1.3963 mL2.7926 mL13.9630 mL
20 mM0.1396 mL0.6981 mL1.3963 mL6.9815 mL
50 mM0.0559 mL0.2793 mL0.5585 mL2.7926 mL
100 mM0.0279 mL0.1396 mL0.2793 mL1.3963 mL

Calculator

  • Molarity Calculator
  • Dilution Calculator
  • Reconstitution Calculator
  • Molecular Weight Calculator

In Vivo Formulation Calculator (Clear solution)

Please enter your animal experiment information in the following box and click Calculate to obtain the stock solution preparation method and in vivo formula preparation method:
TargetMol | Animal experiments For example, if the intended dosage is 10 mg/kg for animals weighing 20 g , with a dosing volume of 100 μL per animal, TargetMol | Animal experiments and a total of 10 animals are to be administered, using a formulation of TargetMol | reagent 10% DMSO+ 40% PEG300+ 5% Tween 80+ 45% Saline/PBS/ddH2O , the resulting working solution concentration would be 2 mg/mL.
Stock Solution Preparation:

Dissolve 2 mg of the compound in 100 μL DMSOTargetMol | reagent to obtain a stock solution at a concentration of 20 mg/mL . If the required concentration exceeds the compound's known solubility, please contact us for technical support before proceeding.

Preparation of the In Vivo Formulation:

1) Add 100 μL of the DMSOTargetMol | reagent stock solution to 400 μL PEG300TargetMol | reagent and mix thoroughly until the solution becomes clear.

2) Add 50 μL Tween 80 and mix well until fully clarified.

3) Add 450 μL Saline,PBS or ddH2OTargetMol | reagent and mix thoroughly until a homogeneous solution is obtained.

This example is provided solely to demonstrate the use of the In Vivo Formulation Calculator and does not constitute a recommended formulation for any specific compound. Please select an appropriate dissolution and formulation strategy based on your experimental model and route of administration.
All co-solvents required for this protocol, includingDMSO, PEG300/PEG400, Tween 80, SBE-β-CD, and Corn oil, are available for purchase on the TargetMol website.
1 Enter information below:
mg/kg
g
μL
2 Enter the in vivo formulation:
% DMSO
%
% Tween 80
% Saline/PBS/ddH2O

Dose Conversion

You can also refer to dose conversion for different animals. More Dose Conversion

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc
