AX-024

Catalog No. T61071 CAS 1370544-73-2

AX-024 is a novel chemical compound that acts as an orally available inhibitor of the TCR-Nck interaction. Its primary mechanism of action is the selective inhibition of T cell activation triggered by TCR stimulation. With an IC50 value of approximately 1 nM, AX-024 effectively modulates cell signaling by specifically targeting SH3 domains. Additionally, AX-024 demonstrates desirable characteristics such as low acute toxicity, high potency, and excellent selectivity. Notably, it exhibits strong inhibitory effects on the production of IL-6, TNF-α, IFN-γ, IL-10, and IL-17A.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

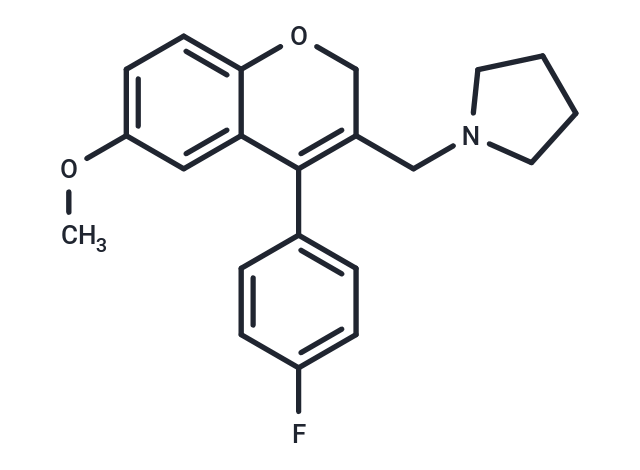

AX-024, CAS 1370544-73-2

Pack Size	Availability	Price/USD	Quantity
2 mg	5 days	$ 67.00
100 mg	6-8 weeks	$ 1,160.00

Bulk Inquiry

Biological Description

Chemical Properties

Storage & Solubility Information

Description	AX-024 is a novel chemical compound that acts as an orally available inhibitor of the TCR-Nck interaction. Its primary mechanism of action is the selective inhibition of T cell activation triggered by TCR stimulation. With an IC50 value of approximately 1 nM, AX-024 effectively modulates cell signaling by specifically targeting SH3 domains. Additionally, AX-024 demonstrates desirable characteristics such as low acute toxicity, high potency, and excellent selectivity. Notably, it exhibits strong inhibitory effects on the production of IL-6, TNF-α, IFN-γ, IL-10, and IL-17A.
In vitro	AX-024 demonstrates exceptional efficacy, being over 10,000 times more effective than the earlier compound AX-000 in inhibiting T-cell proliferation prompted by T-cell receptor (TCR) activation, with an IC50 of 1 nM and observable inhibitory actions at concentrations as low as 1 pM. Furthermore, it significantly suppresses cytokine release from human peripheral blood mononuclear cells, including interleukin-6 (IL-6), tumor necrosis factor-α (TNF-α), interferon-γ (IFN-γ), IL-10, and IL-17A, at 10 nM concentration when stimulated with anti-CD3, outperforming AX-000 in efficiency. In the specific context of CD8+ T cells from OT1 TCR transgenic (OT1 Tg) mice, AX-024 drastically reduces T cell proliferation at just 0.1 nM in cells with a wild-type (WT) PRS mutation. Coimmunoprecipitation assays reveal that, while Nck typically associates with the TCR following activation, this interaction is dose-dependently obstructed by AX-024 starting at 1 nM concentrations, highlighting its potent inhibitory mechanism [1].
In vivo	The AX-024-treated group exhibited fewer scales and a reduction in skin thickening compared to the vehicle group. It significantly lessened the thickening of skin layers, particularly the dermis, closely mirroring the effects seen in mice treated with a control cream without imiquimod (IMQ). Moreover, AX-024 notably decreased the presence of airway inflammatory cells in both assays. Additionally, mice administered AX-024 showed rapid recovery from neurological impairments and weight loss, achieving a symptom-free state by day 30—a stark contrast to mice receiving the vehicle, which continued to exhibit ataxia and a loss of the righting reflex [1].

Molecular Weight	339.4
Formula	C21H22FNO2
CAS No.	1370544-73-2

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.

bottom

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc.
