ML334

Catalog No. T12078 CAS 1432500-66-7

Synonyms: LH601A

ML334 (LH601A) is a transmembrane and potent NRF2 activator that inhibits Keap1-NRF2 protein interactions to ameliorate myocardial infarction-induced cardiac fibrosis by inhibiting cardiac fibroblast activation and proliferation.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

ML334, CAS 1432500-66-7

Pack Size	Availability	Price/USD	Quantity
1 mg	In stock	$ 49.00

Bulk Inquiry

Select Batch

Purity: 98.06%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	ML334 (LH601A) is a transmembrane and potent NRF2 activator that inhibits Keap1-NRF2 protein interactions to ameliorate myocardial infarction-induced cardiac fibrosis by inhibiting cardiac fibroblast activation and proliferation.
Targets&IC50	Keap1:1 μM (Ki)
In vitro	Treatment of HEK293 cells with ML334 (LH601A; 50-100 μM; 6-16 hours) increases NQO1 and TRX1 mRNA levels by 2 to 3 times at both 6 and 16 hours. Additionally, at 6 hours, ML334 enhances HO-1 mRNA expression by 4 to 7 times, with a relatively smaller change in fold increase observed at 16 hours [2]. ML334 (LH601A; 50-100 μM; 16 hours; HEK293 cells) induces the expression of HO-1 and TRX1 proteins in HEK293 cells [2]. Furthermore, ML334 (LH601A) stimulates the expression and nuclear translocation of NRF2 in HEK293 cells [2].

Synonyms	LH601A
Molecular Weight	446.49

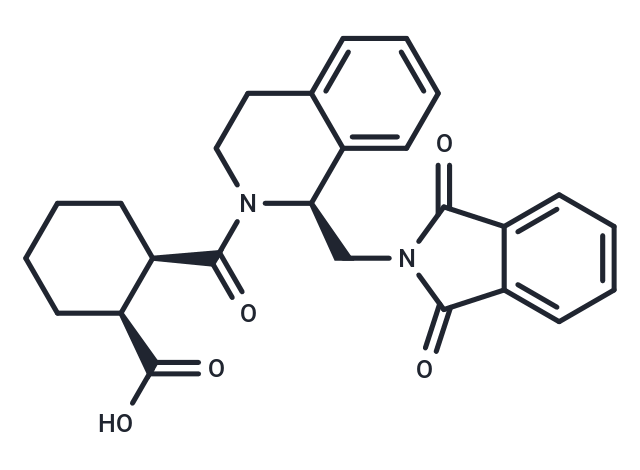

Formula	C26H26N2O5
CAS No.	1432500-66-7

Storage

store at low temperature

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 30 mg/mL (67.19 mM), Sonification is recommended.

Ethanol: 30 mg/mL (67.19 mM), Sonification is recommended.

References and Literature

1. Hu L, et al. Discovery of a small-molecule inhibitor and cellular probe of Keap1-Nrf2 protein-protein interaction. Bioorg Med Chem Lett. 2013 May 15;23(10):3039-43. 2. Wen X, et al. Activation of NRF2 Signaling in HEK293 Cells by a First-in-Class Direct KEAP1-NRF2 Inhibitor. J Biochem Mol Toxicol. 2015 Jun;29(6):261-6.

Related Products

Related compounds with same targets

Hinokitiol Kinsenoside Gingerenone A Tricetin CDDO-dhTFEA KI696 5,7-Dihydroxychromone Nrf2-IN-1

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.

bottom

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc.
