OD36

Catalog No. T35694 CAS 1638644-62-8

Synonyms: OD 36, OD 36 hydrochloride, OD-36

OD36 is a selective and potent RIPK2 inhibitor with an IC50 of 5.3 nM.OD36 inhibits ALK2 signaling and osteogenic differentiation (KD: 37 nM), and binds efficiently to the ALK2 kinase ATP pocket.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

OD36, CAS 1638644-62-8

Pack Size	Availability	Price/USD
1 mg	In stock	$ 177.00
5 mg	In stock	$ 437.00
10 mg	In stock	$ 646.00
25 mg	In stock	$ 987.00
50 mg	In stock	$ 1,380.00
100 mg	In stock	$ 1,860.00

Bulk Inquiry

Select Batch

Biological Description

Chemical Properties

Storage & Solubility Information

Description	OD36 is a selective and potent RIPK2 inhibitor with an IC50 of 5.3 nM.OD36 inhibits ALK2 signaling and osteogenic differentiation (KD: 37 nM), and binds efficiently to the ALK2 kinase ATP pocket.
Targets&IC50	ALK2:37 nM (Kd), ALK2:47 nM (IC50), RIPK2:5.3 nM (IC50), ALK2 (R206H):22 nM (IC50)
In vitro	OD36 shows activity against ALK1 (KD=90 nM).[2] OD36 potently antagonizes mutant ALK2 signaling and osteogenic differentiation.[2] OD36 (0.1-1 μM; 24 h; KS483 cells) efficiently inhibits BMP-6 (50 ng/mL)-induced p-Smad1/5.[2] OD36 (0.5 μM) completely prevents the activation of Smad1/5 and the gene targets ID-1 and ID-3 in response to activin A in preincubated fibrodysplasia ossificans progressiva (FOP) endothelial colony-forming cells (ECFCs).[2]
In vivo	OD36 (6.25 mg/kg; i.p.; once; C57BL/6 mice, muramyl dipeptide (MDP)-induced model of peritonitis) inhibited the recruitment of inflammatory cells to the peritoneum, specifically that of neutrophils, and, to a lesser extent, lymphocytes. Decreased RIPK2-specific genes as well as inflammatory cytokine and chemokine gene expression. OD36 alleviates inflammation in an acute peritonitis mice model.[3]

Synonyms	OD 36, OD 36 hydrochloride, OD-36
Molecular Weight	330.77

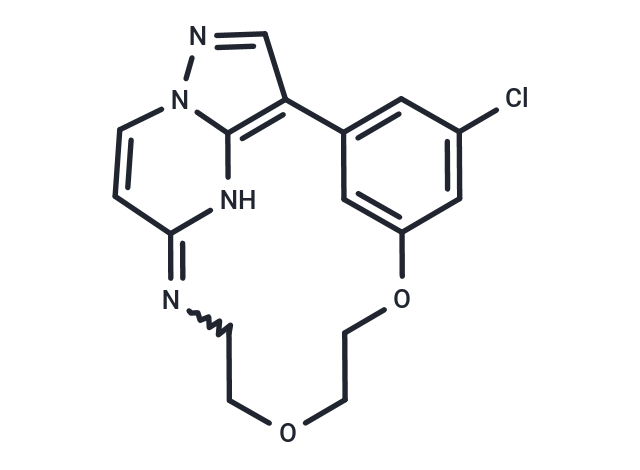

Formula	C16H15ClN4O2
CAS No.	1638644-62-8

Storage

store at low temperature

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 25 mg/mL (75.58 mM), Sonication and heating are recommended.

References and Literature

1. Justine T Tigno-Aranjuez, et al. In vivo inhibition of RIPK2 kinase alleviates inflammatory disease. J Biol Chem. 2014 Oct 24;289(43):29651-64. 2. Gonzalo Sánchez-Duffhues, et al. Development of Macrocycle Kinase Inhibitors for ALK2 Using Fibrodysplasia Ossificans Progressiva-Derived Endothelial Cells. JBMR Plus. 2019 Oct 7;3(11):e10230. 3. Tigno-Aranjuez JT, et al. In vivo inhibition of RIPK2 kinase alleviates inflammatory disease. J Biol Chem. 2014 Oct 24;289(43):29651-64.

Related compound libraries

This product is contained In the following compound libraries：

Kinase Inhibitor Library Inhibitor Library Membrane Protein-targeted Compound Library Bioactive Compound Library Bioactive Compounds Library Max

Related Products

Related compounds with same targets

Alectinib NVP-TAE 684 SB-505124 LDN-214117 EW-7195 GSK1838705A GW788388 ML347

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.

bottom

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc.
