OD36 hydrochloride

Catalog No. T61424 CAS 2387510-88-3

Synonyms: OD 36 hydrochloride, OD-36 hydrochloride

OD36 hydrochloride (OD-36 hydrochloride) is a potent RIPK2 inhibitor with an IC50 of 5.3 nM.OD36 hydrochloride is a macrocyclic inhibitor that binds efficiently to the ATP pocket of the ALK2 kinase and effectively antagonizes mutant ALK2 signaling and osteogenic differentiation.OD36 hydrochloride targets ALK2. OD36 hydrochloride targets ALK2 with a KD of 37 nM.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

OD36 hydrochloride, CAS 2387510-88-3

Pack Size	Availability	Price/USD
25 mg	6-8 weeks	$ 1,290.00
50 mg	6-8 weeks	$ 1,680.00
100 mg	6-8 weeks	$ 2,500.00

Bulk Inquiry

This compound is a customized synthesis product. We have a strong synthesis team with excellent synthesis technology and capabilities. However, due to various objective factors, there is a low probability that the synthesis will not be successful. If you need to learn more, please feel free to consult us, we will serve you wholeheartedly.

Select Batch

Purity: 99.85%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	OD36 hydrochloride (OD-36 hydrochloride) is a potent RIPK2 inhibitor with an IC50 of 5.3 nM.OD36 hydrochloride is a macrocyclic inhibitor that binds efficiently to the ATP pocket of the ALK2 kinase and effectively antagonizes mutant ALK2 signaling and osteogenic differentiation.OD36 hydrochloride targets ALK2. OD36 hydrochloride targets ALK2 with a KD of 37 nM.
In vitro	OD36 hydrochloride inhibits ALK2 (IC50=47 nM) and ALK2 R206H （IC50=22 nM.[1] OD36 hydrochloride exhibits a KD of 90 nM, demonstrating significant activity against ALK1. Additionally, it effectively acts as an antagonist against mutant ALK2 signaling and inhibits osteogenic differentiation.[2] OD36 hydrochloride (0.1-1 μM; 24 h) effectively hinders the BMP-6 (50 ng/mL)-induced phosphorylation of Smad1/5 in KS483 cells. Moreover, when fibrodysplasia ossificans progressiva (FOP) endothelial colony-forming cells (ECFCs) are preincubated with 0.5 μM OD36 hydrochloride, it completely blocks the activation of Smad1/5 as well as the expression of the target genes ID-1 and ID-3 in response to activin A.[2]
In vivo	OD36 (6.25 mg/kg; i.p.; once; C57BL/6 mice, muramyl dipeptide (MDP)-induced model of peritonitis) inhibited the recruitment of inflammatory cells to the peritoneum, specifically that of neutrophils, and, to a lesser extent, lymphocytes. Decreased RIPK2-specific genes as well as inflammatory cytokine and chemokine gene expression. It alleviates inflammation in an acute peritonitis mice model.[3]

Synonyms	OD 36 hydrochloride, OD-36 hydrochloride
Molecular Weight	367.23

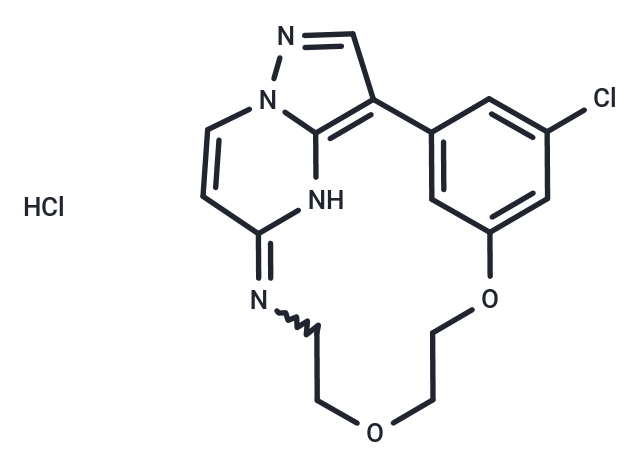

Formula	C16H16Cl2N4O2
CAS No.	2387510-88-3

Storage

store at low temperature,keep away from direct sunlight

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

References and Literature

1. Tigno-Aranjuez JT, et al. In vivo inhibition of RIPK2 kinase alleviates inflammatory disease. J Biol Chem. 2014 Oct 24;289(43):29651-64. 2. Sánchez-Duffhues G, et al. Development of Macrocycle Kinase Inhibitors for ALK2 Using Fibrodysplasia Ossificans Progressiva-Derived Endothelial Cells. JBMR Plus. 2019 Oct 7;3(11):e10230. 3. Tigno-Aranjuez JT, et al. In vivo inhibition of RIPK2 kinase alleviates inflammatory disease. J Biol Chem. 2014 Oct 24;289(43):29651-64.

Related Products

Related compounds with same targets

Brigatinib X-376 Alectinib Vactosertib Hydrochloride K02288 LDN193189 AZ12601011 Lorlatinib

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
