Py-BODIPY-NHS ester

Copy Product Info
😃Good
Catalog No. T18987Cas No. 201998-61-0
Alias NanoBRET 590-SE

Py-BODIPY-NHS ester is a small molecular dye with strong UV absorption that can be used to label living cells and immobilise cells.

Py-BODIPY-NHS ester

Py-BODIPY-NHS ester

Copy Product Info
😃Good
Purity: 97.42%
Catalog No. T18987Alias NanoBRET 590-SECas No. 201998-61-0
Py-BODIPY-NHS ester is a small molecular dye with strong UV absorption that can be used to label living cells and immobilise cells.
Pack SizePriceUSA WarehouseGlobal WarehouseQuantity
1 mg$65-In Stock
5 mg$157In StockIn Stock
10 mg$257In StockIn Stock
25 mg$463In StockIn Stock
50 mg$695-In Stock
100 mg$1,090-In Stock
200 mg$1,480-In Stock
1 mL x 10 mM (in DMSO)$173-In Stock
Add to Cart
Add to Quotation
In Stock Estimated shipping dateUSA Warehouse[1-2 days] Global Warehouse[5-7 days]
All TargetMol products are for research purposes only and cannot be used for human consumption. We do not provide products or services to individuals. Please comply with the intended use and do not use TargetMol products for any other purpose.
Questions
TargetMol
View More

Batch Information

Select Batch
Purity:97.42%
Appearance:Solid
Color:Yellow
Contact us for more batch information

Resource Download

Product Introduction

Bioactivity
Description
Py-BODIPY-NHS ester is a small molecular dye with strong UV absorption that can be used to label living cells and immobilise cells.
In vitro
BODIPY lipid droplet dyes can effectively pass through the cell membrane, entering the cell to specifically stain lipid droplets with polar lipids. This feature makes them suitable for labeling both live and fixed cells [2].
Cell Research
Cell staining experiment
I. Solution preparation:
1. Preparation of mother solution: dilute 1mg Py-BODIPY NHS ester with 382 μL anhydrous DMSO to prepare a 10 mM stock solution; (it is recommended to store at -20 ℃ or -80 ℃ in the dark after aliquoting)
2. Preparation of working solution: dilute the stock solution with preheated serum-free cell culture medium or PBS to prepare a 1-10 μM Py-BODIPY NHS ester working solution; (select the appropriate working solution concentration according to the experimental requirements, and prepare it for use immediately)
II. Cell staining operation steps:
Suspended cells:
1. Collect cells by centrifugation and wash twice with PBS, 5 minutes each time. The cell density is 1×106/mL;
2. Add 1 mL of Py-BODIPY NHS ester working solution and incubate at room temperature for 5-30 minutes;
3. Centrifuge at 400 g for 3-4 minutes and discard the supernatant;
4. Add PBS to wash the cells twice, 5 minutes each time;
5. Resuspend the cells with 1 mL of serum-free medium or PBS and observe them using a fluorescence microscope or flow cytometer.
Adherent cells:
1. Culture the adherent cells on a sterile coverslip;
2. Remove the coverslip from the culture medium and remove the excess culture medium;
3. Add 100 μL of dye working solution, gently shake it to completely cover the cells, and incubate for 5-30 minutes;
4. Aspirate the dye working solution, wash 2-3 times with culture medium, 5 minutes each time, and observe them using a fluorescence microscope or flow cytometer.

The above information is based on published literature. Experimental procedures should be appropriately modified to meet specific research demands.
SynonymsNanoBRET 590-SE
Chemical Properties
Molecular Weight426.18
FormulaC20H17BF2N4O4
Cas No.201998-61-0

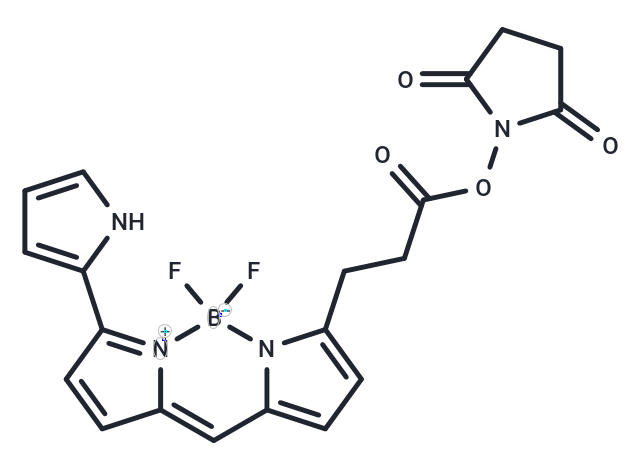

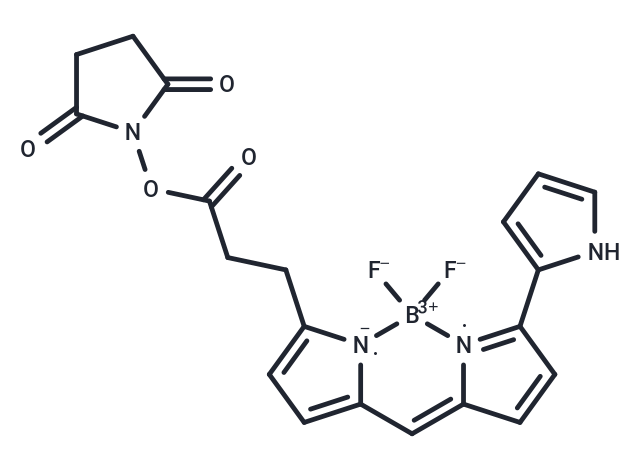

SmilesF[B-]1(F)n2c(CCC(=O)ON3C(=O)CCC3=O)ccc2C=C2C=CC(c3ccc[nH]3)=[N+]12
Relative Density.no data available
Storage & Solubility Information
Storagestore at low temperature,keep away from direct sunlight | Powder: -20°C for 3 years | In solvent: -80°C for 1 year | Shipping with blue ice/Shipping at ambient temperature.
Solubility Information
DMSO: 20 mg/mL (46.93 mM), Sonication is recommended.
Solution Preparation Table
DMSO
1mg5mg10mg50mg
1 mM2.3464 mL11.7321 mL23.4643 mL117.3213 mL
5 mM0.4693 mL2.3464 mL4.6929 mL23.4643 mL
10 mM0.2346 mL1.1732 mL2.3464 mL11.7321 mL
20 mM0.1173 mL0.5866 mL1.1732 mL5.8661 mL

Calculator

  • Molarity Calculator
  • Dilution Calculator
  • Reconstitution Calculator
  • Molecular Weight Calculator

In Vivo Formulation Calculator (Clear solution)

Please enter your animal experiment information in the following box and click Calculate to obtain the stock solution preparation method and in vivo formula preparation method:
TargetMol | Animal experiments For example, if the intended dosage is 10 mg/kg for animals weighing 20 g , with a dosing volume of 100 μL per animal, TargetMol | Animal experiments and a total of 10 animals are to be administered, using a formulation of TargetMol | reagent 10% DMSO+ 40% PEG300+ 5% Tween 80+ 45% Saline/PBS/ddH2O , the resulting working solution concentration would be 2 mg/mL.
Stock Solution Preparation:

Dissolve 2 mg of the compound in 100 μL DMSOTargetMol | reagent to obtain a stock solution at a concentration of 20 mg/mL . If the required concentration exceeds the compound's known solubility, please contact us for technical support before proceeding.

Preparation of the In Vivo Formulation:

1) Add 100 μL of the DMSOTargetMol | reagent stock solution to 400 μL PEG300TargetMol | reagent and mix thoroughly until the solution becomes clear.

2) Add 50 μL Tween 80 and mix well until fully clarified.

3) Add 450 μL Saline,PBS or ddH2OTargetMol | reagent and mix thoroughly until a homogeneous solution is obtained.

This example is provided solely to demonstrate the use of the In Vivo Formulation Calculator and does not constitute a recommended formulation for any specific compound. Please select an appropriate dissolution and formulation strategy based on your experimental model and route of administration.
All co-solvents required for this protocol, includingDMSO, PEG300/PEG400, Tween 80, SBE-β-CD, and Corn oil, are available for purchase on the TargetMol website.
1 Enter information below:
mg/kg
g
μL
2 Enter the in vivo formulation:
% DMSO
%
% Tween 80
% Saline/PBS/ddH2O

Dose Conversion

You can also refer to dose conversion for different animals. More Dose Conversion

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc
