CCR7 Ligand 1

Name: CCR7 Ligand 1
Brand: TargetMol
SKU: T10716
Rating: 4.5 (1 reviews)

😃Good

Catalog No. T10716Cas No. 681514-83-0

Alias CCR7-Cmp2105

CCR7 Ligand 1 (CCR7-Cmp2105) is an allosteric ligand and antagonist for human CC chemokine receptor 7 (CCR7) with a Kd of 3 nM. This thiadiazole-dioxide ligand suppresses arrestin binding in response to activation by CCL19 with an IC50 of 7.3 μM.

CCR7 Ligand 1

😃Good

Catalog No. T10716Alias CCR7-Cmp2105Cas No. 681514-83-0

Pack Size	Price	USA Warehouse	Global Warehouse
2 mg	$1,928	10-14 weeks	10-14 weeks
5 mg	$2,718	10-14 weeks	10-14 weeks
25 mg	$10,200	10-14 weeks	10-14 weeks
50 mg	Inquiry	10-14 weeks	10-14 weeks
100 mg	Inquiry	10-14 weeks	10-14 weeks

Add to Cart

Add to Quotation

In Stock Estimated shipping dateUSA Warehouse[1-2 days] Global Warehouse[5-7 days]

All TargetMol products are for research purposes only and cannot be used for human consumption. We do not provide products or services to individuals. Please comply with the intended use and do not use TargetMol products for any other purpose.

Questions

Resource Download

Product Introduction

Bioactivity

Description	CCR7 Ligand 1 (CCR7-Cmp2105) is an allosteric ligand and antagonist for human CC chemokine receptor 7 (CCR7) with a Kd of 3 nM. This thiadiazole-dioxide ligand suppresses arrestin binding in response to activation by CCL19 with an IC50 of 7.3 μM.
Targets&IC50	CCR7 (human):3 nM (kd)
In vitro	CCR7 Ligand 1 (CCR7-Cmp2105) binds specifically to the intracellular domain of CCR7 between transmembrane segments TM1, TM2, TM3, and TM6, and the loop linking TM7 and helix 8 [1]. This binding allosterically inhibits CCL19 binding to CCR7 with an IC50 of 35 nM in scintillation proximity assays (bottom) [1], and varying concentrations (20, 40, 60, 80, 100 μM) of CCR7 Ligand 1 enhance CCR7's thermal stability concentration-dependently [1].
Synonyms	CCR7-Cmp2105

Chemical Properties

Molecular Weight	475.56
Formula	C₂₂H₂₉N₅O₅S
Cas No.	681514-83-0

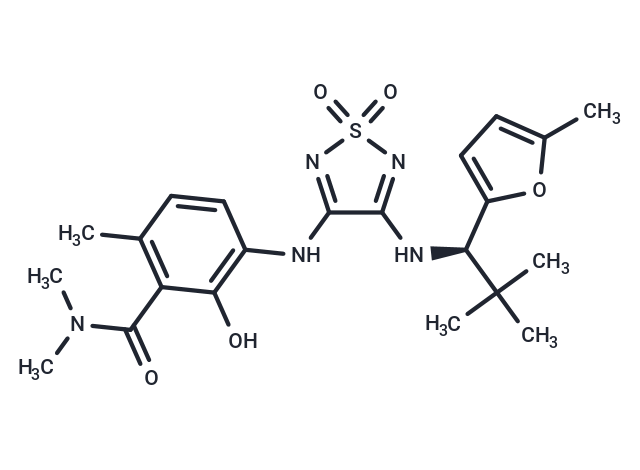

Smiles	CN(C)C(=O)c1c(C)ccc(NC2=NS(=O)(=O)N=C2N[C@@H](c2ccc(C)o2)C(C)(C)C)c1O
Relative Density.	1.35 g/cm3 (Predicted)

Storage & Solubility Information

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year | Shipping with blue ice/Shipping at ambient temperature.

Solubility Information

DMSO: 12.5 mg/mL (26.28 mM), Sonication is recommended.

Solution Preparation Table

DMSO

	1mg	5mg	10mg	50mg
1 mM	2.1028 mL	10.5139 mL	21.0278 mL	105.1392 mL
5 mM	0.4206 mL	2.1028 mL	4.2056 mL	21.0278 mL
10 mM	0.2103 mL	1.0514 mL	2.1028 mL	10.5139 mL
20 mM	0.1051 mL	0.5257 mL	1.0514 mL	5.2570 mL

Calculator

Molarity Calculator
Dilution Calculator
Reconstitution Calculator
Molecular Weight Calculator

In Vivo Formulation Calculator (Clear solution)

Please enter your animal experiment information in the following box and click Calculate to obtain the stock solution preparation method and in vivo formula preparation method:

For example, if the intended dosage is 10 mg/kg for animals weighing 20 g , with a dosing volume of 100 μL per animal, TargetMol | Animal experiments

and a total of 10 animals are to be administered, using a formulation of TargetMol | reagent

10% DMSO+ 40% PEG300+ 5% Tween 80+ 45% Saline/PBS/ddH₂O , the resulting working solution concentration would be 2 mg/mL.

Stock Solution Preparation:

Dissolve 2 mg of the compound in 100 μL DMSO TargetMol | reagent to obtain a stock solution at a concentration of 20 mg/mL . If the required concentration exceeds the compound's known solubility, please contact us for technical support before proceeding.

Preparation of the In Vivo Formulation:

1) Add 100 μL of the DMSO TargetMol | reagent stock solution to 400 μL PEG300 and mix thoroughly until the solution becomes clear.

2) Add 50 μL Tween 80 and mix well until fully clarified.

3) Add 450 μL Saline,PBS or ddH₂O TargetMol | reagent and mix thoroughly until a homogeneous solution is obtained.

This example is provided solely to demonstrate the use of the In Vivo Formulation Calculator and does not constitute a recommended formulation for any specific compound. Please select an appropriate dissolution and formulation strategy based on your experimental model and route of administration.

All co-solvents required for this protocol, includingDMSO, PEG300/PEG400, Tween 80, SBE-β-CD, and Corn oil, are available for purchase on the TargetMol website.

Dose Conversion

You can also refer to dose conversion for different animals. More Dose Conversion

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc
