PRN694

Catalog No. T16578 CAS 1575818-46-0

PRN694 shows extended target residence time on ITK and RLK, enabling durable attenuation of effector cells in vitro and in vivo. PRN694 is an irreversible, highly selective, and effective covalent interleukin-2-inducible T-cell kinase (ITK) and resting lymphocyte kinase (RLK) dual inhibitor (IC50s: 0.3 nM and 1.4 nM, respectively).

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

PRN694, CAS 1575818-46-0

Pack Size	Availability	Price/USD
25 mg	10-14 weeks	$ 7,140.00
50 mg	10-14 weeks	$ 9,280.00
100 mg	10-14 weeks	$ 13,400.00

Bulk Inquiry

This compound is a customized synthesis product. We have a strong synthesis team with excellent synthesis technology and capabilities. However, due to various objective factors, there is a low probability that the synthesis will not be successful. If you need to learn more, please feel free to consult us, we will serve you wholeheartedly.

Biological Description

Chemical Properties

Storage & Solubility Information

Description	PRN694 shows extended target residence time on ITK and RLK, enabling durable attenuation of effector cells in vitro and in vivo. PRN694 is an irreversible, highly selective, and effective covalent interleukin-2-inducible T-cell kinase (ITK) and resting lymphocyte kinase (RLK) dual inhibitor (IC50s: 0.3 nM and 1.4 nM, respectively).
Targets&IC50	RLK:1.4 nM, BLK:125 nM, BTK:17 nM, JAK3:30 nM, BMX:17 nM, ITK:0.3 nM, TEC:3.3 nM
In vitro	PRN694 obviously decreases NK cell FcR-induced killing at concentrations exceeding 0.37 μM. PRN694 inhibits TEC, BTK, BMX, BLK, JAK3 with IC50s of 3.3, 17, 17, 125, 30 nM, respectively. Immunoblot analysis of TCR activation pathways shows that PRN694 blocks activation or nuclear translocation of NFAT1, JunB, pIκBα, and pERK. Results display inhibition of Ca2+ signaling with PRN694 at all concentrations above 1 nM. Day 6 flow cytometry analysis reveals that PRN694 significantly inhibits the anti-CD3/CD28-induced proliferation of both CD4 and CD8 T-cells (p<0.01)[1].
In vivo	RN694 treatment also causes obviously lower weights relative to the vehicle (p<0.05). Colitis studies show reduced numbers of CD4+ T cells present in the colonic epithelium of PRN694-treated mice compare with controls. The PRN694 occupancy of ITK is 98, 95, and 54% at 1, 6, and 14 h, respectively. The concentrations of PRN694 in the plasma are 2.8, 0.66, and 0.027 μM at 1, 6, and 14 h, respectively. At 14 h, the plasma level of PRN694 is over 10 fold lower than the IC50 in whole blood [1][2].

Molecular Weight	543.67

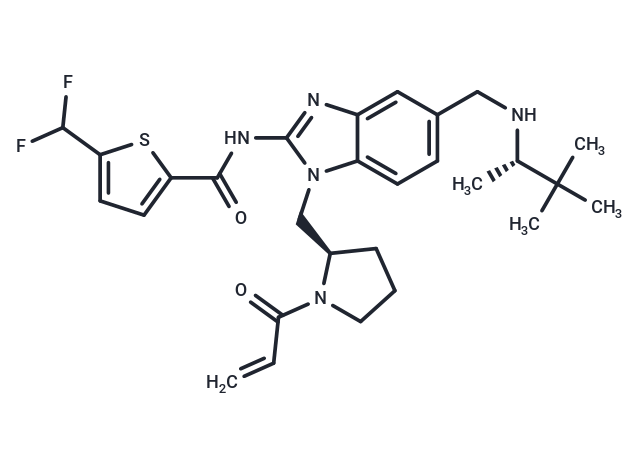

Formula	C28H35F2N5O2S
CAS No.	1575818-46-0

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 125 mg/mL (229.92 mM), Sonication and heating are recommended.

References and Literature

1. Zhong Y, et al. Targeting interleukin-2-inducible T-cell kinase (ITK) and resting lymphocyte kinase (RLK) using a novel covalent inhibitor PRN694. J Biol Chem. 2015 Mar 6;290(10):5960-78. 2. Cho HS, et al. A Small Molecule Inhibitor of ITK and RLK Impairs Th1 Differentiation and Prevents Colitis Disease Progression. J Immunol. 2015 Nov 15;195(10):4822-31.

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
