SU14813 maleate

Catalog No. TQ0080   CAS 849643-15-8

SU14813 maleate is an inhibitor of multi-targeted receptor tyrosine kinases (IC50s: 2, 50, 4, 15 nM for VEGFR1, VEGFR2, PDGFRβ, and KIT).

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

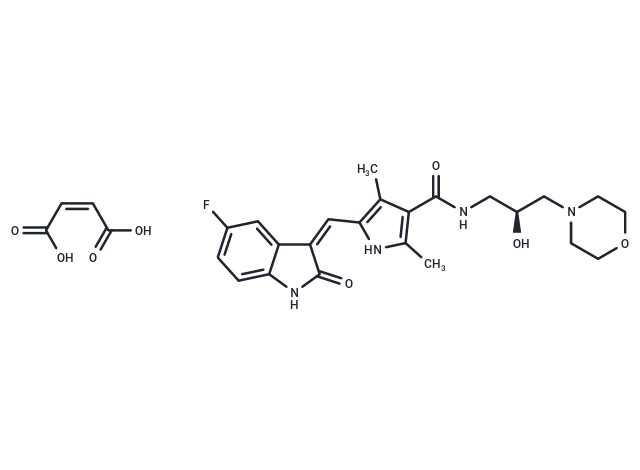

SU14813 maleate Chemical Structure
SU14813 maleate, CAS 849643-15-8
Pack Size Availability Price/USD Quantity
2 mg 5 days $ 53.00
Bulk Inquiry
Get quote
Contact us for more batch information
Biological Description
Chemical Properties
Storage & Solubility Information
Description SU14813 maleate is an inhibitor of multi-targeted receptor tyrosine kinases (IC50s: 2, 50, 4, 15 nM for VEGFR1, VEGFR2, PDGFRβ, and KIT).
Targets&IC50 PDGFRβ:4 nM, c-Kit:15 nM, VEGFR1:2 nM, VEGFR2:50 nM
In vitro SU14813 inhibits cellular ligand-dependent phosphorylation of VEGFR-2 (transfected NIH 3T3 cells), PDGFR-β (transfected NIH 3T3 cells), KIT (Mo7e cells), and FLT3-internal tandem duplication (FLT3-ITD; MV4;11 cells) as well as FMS/CSF1R (transfected NIH 3T3 cells). SU14813 inhibits VEGFR-2, PDGFR-β, and KIT phosphorylation in porcine aorta endothelial cells overexpressing these targets, with cellular IC50 values of 5.2, 9.9, and 11.2 nM, respectively. SU14813 inhibits the growth of U-118MG (IC50: 50-100 nM).
In vivo SU14813 inhibits VEGFR-2, PDGFR-β, and FLT3 phosphorylation in xenograft tumors in a dose- and time-dependent fashion. The plasma concentration required for in vivo target inhibition is estimated to be 100 to 200 ng/mL. Used as monotherapy, SU14813 exhibits broad and potent antitumor activity resulting in regression, growth arrest, or substantially reduced growth of various established xenografts derived from human or rat tumor cell lines.
Cell Research Passages 4 to 5 human umbilical vein endothelial cells are grown to subconfluency in EGM2 medium containing 10% FBS, endothelial cell growth supplement, and 10 μg/mL sodium heparin. The cells are seeded in 96-well plates at 10,000 per well in F12K medium and 10% FBS. The next day, cells are starved for 18 hours in F12K+1% FBS and then incubated with SU14813 in various concentrations. 45 minutes later, 20 ng/mL growth factor [VEGF or basic fibroblast growth factor (bFGF)] is introduced into the assay. Three days later, cell numbers are determined using the MTT assay.
Animal Research SU14813 is evaluated for its efficacy and synergism in combination with the microtubule inhibitor docetaxel in docetaxel-resistant murine LLC model. SU14813 is administered p.o. twice daily (BID) at doses of 10, 40, 80, or 120 mg/kg beginning on day 5 after tumor implantation. Docetaxel 40 mg/kg (mouse maximum tolerated dose) is administered i.v. thrice-weekly also beginning on day 5 after tumor implantation.
Molecular Weight 558.56
Formula C27H31FN4O8
CAS No. 849643-15-8

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 100 mg/mL (179.03 mM)

TargetMolReferences and Literature

1. Patyna S, et al. SU14813: a novel multiple receptor tyrosine kinase inhibitor with potent antiangiogenic and antitumor activity. Mol Cancer Ther. 2006 Jul;5(7):1774-82.

Related Products

Related compounds with same targets
Imatinib impurities3 AG 1295 NVP-ACC789 PD-089828 CT52923 Pazopanib Hydrochloride R1530 CP-547632

TargetMolDose Conversion

You can also refer to dose conversion for different animals. More

TargetMol In vivo Formulation Calculator (Clear solution)

Step One: Enter information below
Dosage
mg/kg
Average weight of animals
g
Dosing volume per animal
ul
Number of animals
Step Two: Enter the in vivo formulation
% DMSO
%
% Tween 80
% ddH2O
Calculate Reset

TargetMolCalculator

Molarity Calculator
Dilution Calculator
Reconstitution Calculation
Molecular Weight Calculator
=
X
X

Molarity Calculator allows you to calculate the

  • Mass of a compound required to prepare a solution of known volume and concentration
  • Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Concentration of a solution resulting from a known mass of compound in a specific volume
See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

X
=
X

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

=
/

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.

bottom

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc.

Keywords

SU14813 maleate 849643-15-8 Angiogenesis Tyrosine Kinase/Adaptors PDGFR VEGFR c-Kit SU-14813 maleate SU 14813 Maleate SU-14813 Maleate SU14813 Maleate inhibitor inhibit
