PF-04449613

Name: PF-04449613
Brand: TargetMol
SKU: T37800
Rating: 4.5 (1 reviews)

Copy Product Info

🥰Excellent

Catalog No. T37800Cas No. 1236858-52-8

PF-04449613 is a phosphodiesterase 9A (PDE9A) inhibitor (IC50= 22 nM).1It is selective for PDE9A over PDE1C (IC50= >1,000 nM), as well as over a variety of other PDEs, inhibiting PDE2-8, -10, and -11 activity by less than 30% in a panel of enzymes, ion channels, and transporters at 1 μM but does inhibit the human dopamine transporter (DAT; Ki= 293 nM).

PF-04449613

Copy Product Info

🥰Excellent

Catalog No. T37800Cas No. 1236858-52-8

Product information is being updated, if you want to purchase, please click the bulk custom button.

Add to Quotation

Questions

Resource Download

Product Introduction

Bioactivity

Description	PF-04449613 is a phosphodiesterase 9A (PDE9A) inhibitor (IC50= 22 nM).1It is selective for PDE9A over PDE1C (IC50= >1,000 nM), as well as over a variety of other PDEs, inhibiting PDE2-8, -10, and -11 activity by less than 30% in a panel of enzymes, ion channels, and transporters at 1 μM but does inhibit the human dopamine transporter (DAT; Ki= 293 nM).
Targets&IC50	PDE9A:22 nM
In vivo	PF-04449613 (0.1-100 mg/kg, s.c.) increases cerebrospinal fluid (CSF) levels of cyclic GMP (cGMP) in rats. Subcutaneous administration of PF-04449613 (10 mg/kg) increases the rate of dendritic spine formation and elimination in mouse primary motor cortex pyramidal neuronsin vivo.2It increases the average running speed of mice in an accelerating rotarod task, indicating improved motor learning, at the same dose.

Chemical Properties

Molecular Weight	395.45
Formula	C₂₁H₂₅N₅O₃
Cas No.	1236858-52-8

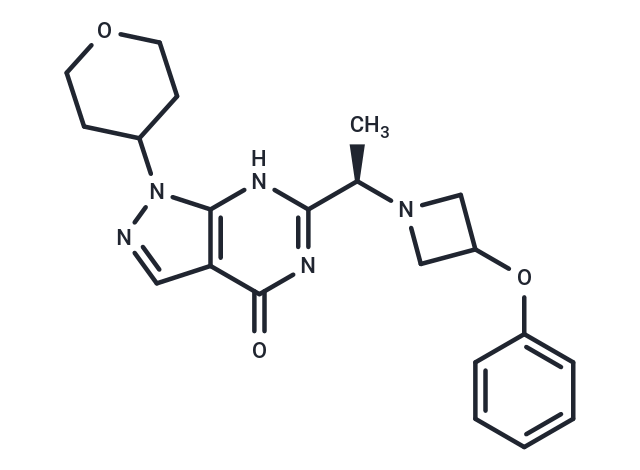

Smiles	O=C1C2=C(N(N=C2)C3CCOCC3)NC([C@@H](C)N4CC(OC5=CC=CC=C5)C4)=N1
Relative Density.	no data available

Storage & Solubility Information

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year | Shipping with blue ice/Shipping at ambient temperature.

Solubility Information

DMSO: 10 mg/mL (25.29 mM), Sonication is recommended.

Solution Preparation Table

DMSO

	1mg	5mg	10mg	50mg
1 mM	2.5288 mL	12.6438 mL	25.2876 mL	126.4382 mL
5 mM	0.5058 mL	2.5288 mL	5.0575 mL	25.2876 mL
10 mM	0.2529 mL	1.2644 mL	2.5288 mL	12.6438 mL
20 mM	0.1264 mL	0.6322 mL	1.2644 mL	6.3219 mL

Calculator

Molarity Calculator
Dilution Calculator
Reconstitution Calculator
Molecular Weight Calculator

In Vivo Formulation Calculator (Clear solution)

Please enter your animal experiment information in the following box and click Calculate to obtain the stock solution preparation method and in vivo formula preparation method:

For example, if the intended dosage is 10 mg/kg for animals weighing 20 g , with a dosing volume of 100 μL per animal, TargetMol | Animal experiments

and a total of 10 animals are to be administered, using a formulation of TargetMol | reagent

10% DMSO+ 40% PEG300+ 5% Tween 80+ 45% Saline/PBS/ddH₂O , the resulting working solution concentration would be 2 mg/mL.

Stock Solution Preparation:

Dissolve 2 mg of the compound in 100 μL DMSO TargetMol | reagent to obtain a stock solution at a concentration of 20 mg/mL . If the required concentration exceeds the compound's known solubility, please contact us for technical support before proceeding.

Preparation of the In Vivo Formulation:

1) Add 100 μL of the DMSO TargetMol | reagent stock solution to 400 μL PEG300 and mix thoroughly until the solution becomes clear.

2) Add 50 μL Tween 80 and mix well until fully clarified.

3) Add 450 μL Saline,PBS or ddH₂O TargetMol | reagent and mix thoroughly until a homogeneous solution is obtained.

This example is provided solely to demonstrate the use of the In Vivo Formulation Calculator and does not constitute a recommended formulation for any specific compound. Please select an appropriate dissolution and formulation strategy based on your experimental model and route of administration.

All co-solvents required for this protocol, includingDMSO, PEG300/PEG400, Tween 80, SBE-β-CD, and Corn oil, are available for purchase on the TargetMol website.

Dose Conversion

You can also refer to dose conversion for different animals. More Dose Conversion

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc
