GNE 220
Copy Product Info
😃Good
Catalog No. T11443Cas No. 1199590-75-4
GNE-220 is a potent and selective inhibitor of MAP4K4, with an IC50 of 7 nM.
GNE 220
Copy Product Info😃Good
Catalog No. T11443Cas No. 1199590-75-4
GNE-220 is a potent and selective inhibitor of MAP4K4, with an IC50 of 7 nM.
| Pack Size | Price | USA Warehouse | Global Warehouse | Quantity |
|---|---|---|---|---|
| 25 mg | $1,970 | 8-10 weeks | 8-10 weeks | |
| 50 mg | $2,580 | 8-10 weeks | 8-10 weeks | |
| 100 mg | $3,400 | 8-10 weeks | 8-10 weeks |
Add to Cart
Add to Quotation
In Stock Estimated shipping dateUSA Warehouse[1-2 days] Global Warehouse[5-7 days]
All TargetMol products are for research purposes only and cannot be used for human consumption. We do not provide products or services to individuals. Please comply with the intended use and do not use TargetMol products for any other purpose.
Resource Download
Product Introduction
Bioactivity
Chemical Properties
Storage & Solubility Information
| Description | GNE-220 is a potent and selective inhibitor of MAP4K4, with an IC50 of 7 nM. |
| Targets&IC50 | MAP4K5:9 nM, MAP4K4:7 nM, MAP4K6:1.1 μM |
| In vitro | GNE-220 alters human umbilical vein endothelial cells (HUVEC) sprout morphology.?GNE-220 also reduces pERM+ retraction fibres in a dose-dependent manner.?GNE-220 also dose-dependently increased the number of active-INTβ1+ long focal adhesions (FAs).GNE-220 also inhibits a few other kinases with IC50s of 9 nM, 476 nM and 1.1 μM for MINK (MAP4K6), DMPK and KHS1 (MAP4K5), respectively. |
| Molecular Weight | 438.53 |
| Formula | C25H26N8 |
| Cas No. | 1199590-75-4 |

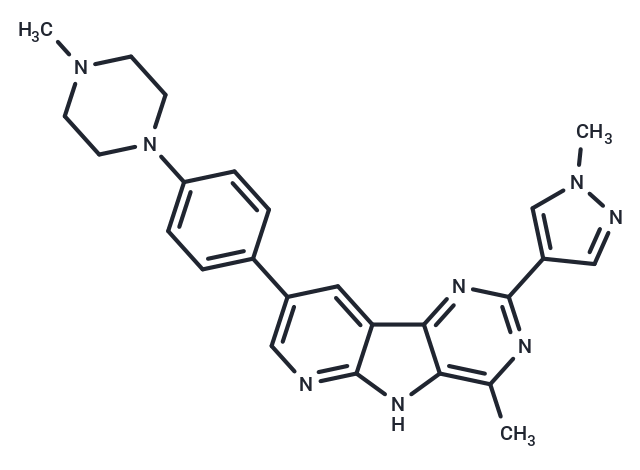

| Smiles | CC1=C2C(C=3C(N2)=NC=C(C3)C4=CC=C(C=C4)N5CCN(C)CC5)=NC(=N1)C6=CN(C)N=C6 |
| Relative Density. | 1.38 g/cm3 (Predicted) |
| Storage | Powder: -20°C for 3 years | In solvent: -80°C for 1 year | Shipping with blue ice/Shipping at ambient temperature. |
Calculator
In Vivo Formulation Calculator (Clear solution)
Please enter your animal experiment information in the following box and click Calculate to obtain the stock solution preparation method and in vivo formula preparation method:
For example, if the intended dosage is 10 mg/kg for animals weighing 20 g , with a dosing volume of 100 μL per animal, and a total of 10 animals are to be administered, using a formulation of
10% DMSO+ 40% PEG300+ 5% Tween 80+ 45% Saline/PBS/ddH2O , the resulting working solution concentration would be 2 mg/mL.Stock Solution Preparation:
Dissolve 2 mg of the compound in 100 μL DMSO to obtain a stock solution at a concentration of 20 mg/mL . If the required concentration exceeds the compound's known solubility, please contact us for technical support before proceeding.
Preparation of the In Vivo Formulation:
1) Add 100 μL of the DMSO stock solution to 400 μL PEG300 and mix thoroughly until the solution becomes clear.
2) Add 50 μL Tween 80 and mix well until fully clarified.
3) Add 450 μL Saline,PBS or ddH2O and mix thoroughly until a homogeneous solution is obtained.
This example is provided solely to demonstrate the use of the In Vivo Formulation Calculator and does not constitute a recommended formulation for any specific compound. Please select an appropriate dissolution and formulation strategy based on your experimental model and route of administration.
Dose Conversion
You can also refer to dose conversion for different animals. More Dose Conversion
Tech Support
Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc
