DBCO-Cy3

Name: DBCO-Cy3
Brand: TargetMol
SKU: T18969
Price: 169 USD
Availability: InStock
Rating: 5 (10 reviews)

Copy Product Info

😃Good

Catalog No. T18969Cas No. 1782950-79-1

Alias DBCO-Sulfo-Cy3

DBCO-Cy3 (DBCO-Sulfo-Cy3) is a modified cyanine-3 and orange-red fluorescent dye that can undergo SPAAC click chemistry reactions with azide groups. It has an excitation wavelength of 555 nm and an emission wavelength of 580 nm.

DBCO-Cy3

Copy Product Info

😃Good

Purity: 97.19%

Catalog No. T18969Alias DBCO-Sulfo-Cy3Cas No. 1782950-79-1

Pack Size	Price	USA Warehouse	Global Warehouse
1 mg	$169	-	In Stock
5 mg	$428	-	In Stock
10 mg	$689	-	In Stock
25 mg	$1,050	-	In Stock

Add to Cart

Add to Quotation

In Stock Estimated shipping dateUSA Warehouse[1-2 days] Global Warehouse[5-7 days]

All TargetMol products are for research purposes only and cannot be used for human consumption. We do not provide products or services to individuals. Please comply with the intended use and do not use TargetMol products for any other purpose.

Questions

Batch Information

Select Batch

Purity:97.19%

Appearance:Solid

Color:Red

Resource Download

COA HPLC HNMR

Product Introduction

Bioactivity

Description	DBCO-Cy3 (DBCO-Sulfo-Cy3) is a modified cyanine-3 and orange-red fluorescent dye that can undergo SPAAC click chemistry reactions with azide groups. It has an excitation wavelength of 555 nm and an emission wavelength of 580 nm.
In vivo	DBCO-Cy3 is capable of conjugating to antibodies, proteins, and peptides and can be excited using the 532 nm or 555 nm laser lines and visualized using the TRITC filter set.
Synonyms	DBCO-Sulfo-Cy3

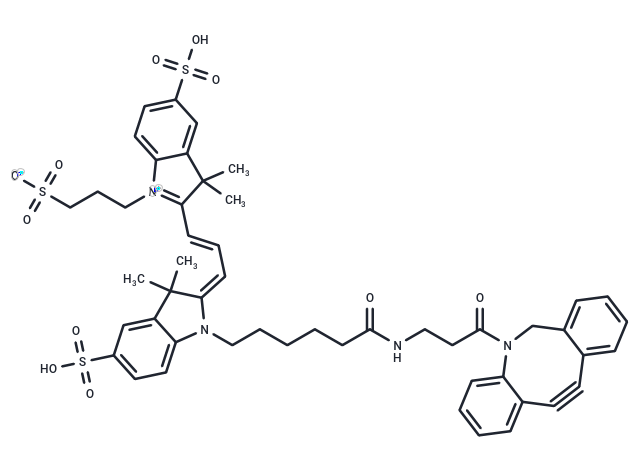

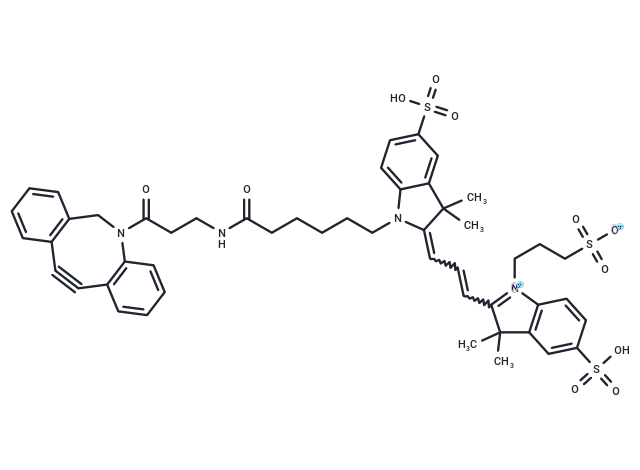

Chemical Properties

Molecular Weight	983.18
Formula	C₅₀H₅₄N₄O₁₁S₃
Cas No.	1782950-79-1
Smiles	O=C(NCCC(=O)N1C=2C=CC=CC2C#CC=3C=CC=CC3C1)CCCCCN4C5=CC=C(C=C5C(C4=CC=CC6=[N+](C=7C=CC(=CC7C6(C)C)S(=O)(=O)O)CCCS(=O)(=O)[O-])(C)C)S(=O)(=O)O
Relative Density.	no data available

Storage & Solubility Information

Storage

keep away from direct sunlight | store at -20°C | Shipping with blue ice/Shipping at ambient temperature.

Solubility Information

DMSO: 100 mg/mL (101.71 mM), Sonication is recommended.

Solution Preparation Table

DMSO

	1mg	5mg	10mg	50mg
1 mM	1.0171 mL	5.0855 mL	10.1711 mL	50.8554 mL
5 mM	0.2034 mL	1.0171 mL	2.0342 mL	10.1711 mL
10 mM	0.1017 mL	0.5086 mL	1.0171 mL	5.0855 mL
20 mM	0.0509 mL	0.2543 mL	0.5086 mL	2.5428 mL
50 mM	0.0203 mL	0.1017 mL	0.2034 mL	1.0171 mL
100 mM	0.0102 mL	0.0509 mL	0.1017 mL	0.5086 mL

Calculator

Molarity Calculator
Dilution Calculator
Reconstitution Calculator
Molecular Weight Calculator

In Vivo Formulation Calculator (Clear solution)

Please enter your animal experiment information in the following box and click Calculate to obtain the stock solution preparation method and in vivo formula preparation method:

For example, if the intended dosage is 10 mg/kg for animals weighing 20 g , with a dosing volume of 100 μL per animal, TargetMol | Animal experiments

and a total of 10 animals are to be administered, using a formulation of TargetMol | reagent

10% DMSO+ 40% PEG300+ 5% Tween 80+ 45% Saline/PBS/ddH₂O , the resulting working solution concentration would be 2 mg/mL.

Stock Solution Preparation:

Dissolve 2 mg of the compound in 100 μL DMSO TargetMol | reagent to obtain a stock solution at a concentration of 20 mg/mL . If the required concentration exceeds the compound's known solubility, please contact us for technical support before proceeding.

Preparation of the In Vivo Formulation:

1) Add 100 μL of the DMSO TargetMol | reagent stock solution to 400 μL PEG300 and mix thoroughly until the solution becomes clear.

2) Add 50 μL Tween 80 and mix well until fully clarified.

3) Add 450 μL Saline,PBS or ddH₂O TargetMol | reagent and mix thoroughly until a homogeneous solution is obtained.

This example is provided solely to demonstrate the use of the In Vivo Formulation Calculator and does not constitute a recommended formulation for any specific compound. Please select an appropriate dissolution and formulation strategy based on your experimental model and route of administration.

All co-solvents required for this protocol, includingDMSO, PEG300/PEG400, Tween 80, SBE-β-CD, and Corn oil, are available for purchase on the TargetMol website.

Dose Conversion

You can also refer to dose conversion for different animals. More Dose Conversion

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc
