5-AF594 tyramide

😃Good
Catalog No. T210654Cas No. 3046210-60-7

5-AF594 tyramide is a red fluorescent dye (Ex=590 nm, Em=618 nm). It serves as a fluorescent substrate reported for horseradish peroxidase (HRP)-catalyzed deposition, aiding in tyramide signal amplification (TSA). 5-AF594 tyramide is applicable in multicolor immunohistochemistry experiments (mIHC).

5-AF594 tyramide

5-AF594 tyramide

😃Good
Catalog No. T210654Cas No. 3046210-60-7
5-AF594 tyramide is a red fluorescent dye (Ex=590 nm, Em=618 nm). It serves as a fluorescent substrate reported for horseradish peroxidase (HRP)-catalyzed deposition, aiding in tyramide signal amplification (TSA). 5-AF594 tyramide is applicable in multicolor immunohistochemistry experiments (mIHC).
Pack SizePriceUSA WarehouseGlobal WarehouseQuantity
10 mgInquiryInquiryInquiry
50 mgInquiryInquiryInquiry
Add to Quotation
In Stock Estimated shipping dateUSA Warehouse[1-2 days] Global Warehouse[5-7 days]
All TargetMol products are for research purposes only and cannot be used for human consumption. We do not provide products or services to individuals. Please comply with the intended use and do not use TargetMol products for any other purpose.
Questions
TargetMol
View More

Resource Download

Product Introduction

Bioactivity
Description
5-AF594 tyramide is a red fluorescent dye (Ex=590 nm, Em=618 nm). It serves as a fluorescent substrate reported for horseradish peroxidase (HRP)-catalyzed deposition, aiding in tyramide signal amplification (TSA). 5-AF594 tyramide is applicable in multicolor immunohistochemistry experiments (mIHC).
In vitro
5-AF594 tyramide detection involves several steps: 1) Incubate slices in 0.25% Triton X-100 at room temperature for 10 minutes to permeabilize; 2) Incubate with primary antibody overnight at 4°C; 3) Block endogenous peroxidase activity by incubating in 1x PBS with 3% H2O2 for 20 minutes; 4) Incubate with FITC-conjugated anti-rabbit IgG primary antibody at room temperature for 1 hour (1:100 dilution), followed by incubation with FITC-conjugated HRP antibody at 4°C overnight (1:500 dilution); 5) Incubate with 5-AF594 tyramide for 10 minutes (1:200 dilution); 6) Detect using a fluorescence microscope. Note: It is recommended to determine the optimal concentration of 5-AF594 tyramide working solution based on specific conditions.

The above information is based on published literature. Experimental procedures should be appropriately modified to meet specific research demands.
Chemical Properties
Molecular Weight841.95
FormulaC43H43N3O11S2
Cas No.3046210-60-7

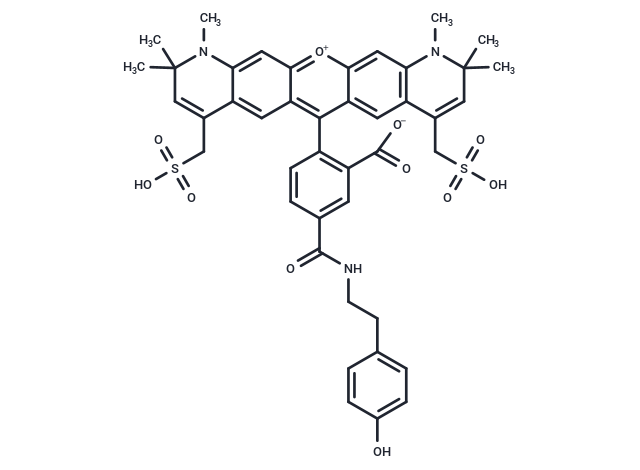

SmilesO=C([O-])C=1C=C(C=CC1C=2C3=CC4=C(C=C3[O+]=C5C=C6C(=CC52)C(=CC(N6C)(C)C)CS(=O)(=O)O)N(C)C(C=C4CS(=O)(=O)O)(C)C)C(=O)NCCC7=CC=C(O)C=C7
Storage & Solubility Information
Storagekeep away from direct sunlight | Powder: -20°C for 3 years | In solvent: -80°C for 1 year | Shipping with blue ice/Shipping at ambient temperature.

Calculator

  • Molarity Calculator
  • Dilution Calculator
  • Reconstitution Calculator
  • Molecular Weight Calculator

In Vivo Formulation Calculator (Clear solution)

Please enter your animal experiment information in the following box and click Calculate to obtain the stock solution preparation method and in vivo formula preparation method:
TargetMol | Animal experiments For example, if the intended dosage is 10 mg/kg for animals weighing 20 g , with a dosing volume of 100 μL per animal, TargetMol | Animal experiments and a total of 10 animals are to be administered, using a formulation of TargetMol | reagent 10% DMSO+ 40% PEG300+ 5% Tween 80+ 45% Saline/PBS/ddH2O , the resulting working solution concentration would be 2 mg/mL.
Stock Solution Preparation:

Dissolve 2 mg of the compound in 100 μL DMSOTargetMol | reagent to obtain a stock solution at a concentration of 20 mg/mL . If the required concentration exceeds the compound's known solubility, please contact us for technical support before proceeding.

Preparation of the In Vivo Formulation:

1) Add 100 μL of the DMSOTargetMol | reagent stock solution to 400 μL PEG300TargetMol | reagent and mix thoroughly until the solution becomes clear.

2) Add 50 μL Tween 80 and mix well until fully clarified.

3) Add 450 μL Saline,PBS or ddH2OTargetMol | reagent and mix thoroughly until a homogeneous solution is obtained.

This example is provided solely to demonstrate the use of the In Vivo Formulation Calculator and does not constitute a recommended formulation for any specific compound. Please select an appropriate dissolution and formulation strategy based on your experimental model and route of administration.
All co-solvents required for this protocol, includingDMSO, PEG300/PEG400, Tween 80, SBE-β-CD, and Corn oil, are available for purchase on the TargetMol website.
1 Enter information below:
mg/kg
g
μL
2 Enter the in vivo formulation:
% DMSO
%
% Tween 80
% Saline/PBS/ddH2O

Dose Conversion

You can also refer to dose conversion for different animals. More Dose Conversion
